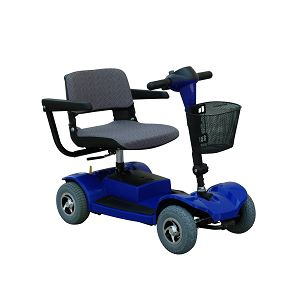

Efficient Foldable Mobility Scooter (BTM-03)

Specifications

Product Description

Model: BTM-03
Color: All kinds of color
Specification:
Weight capacity: 150kg
Rear wheel size: Air tyre size288mm/11.34"
Front wheel size: Air tyre size288mm/11.34"
Battery: 12V/20AH*2
Charger: 24V 2.0AMP (automatic three-mode selections)
Charger time: 8-14H
Controller: CURTIS (import from USA)
Motor: 400W
Net weight (with batteries): 45.4kg
Battery Weight: 9.1kg*2
Overall dimension (length x width x height): 1052*560*841mm/41.42*22.05*33.11"
Overall carton dimension: 1070*560*500mm/42.13*22.05*19.68"
Seat dimension (length x width x height): 432*406*305mm/17.00*15.98*12.00"
Ground Clearance: 65mm/1.57"
Climbing capability: 8 degree
Turning radius (min): 1120mm/44.09"
Maximum obstacle: 50mm/1.97"
Range: 4-5h(subject to the load, terrain conditions)
Max forward speed: 6.4km/h
Qfy/20'FCL: 80PCS
Qfy/40'HQ: 220PCS

Features:
Innovative design, foldable, compact and easy to operate.
Anti-tip, anti turn-on-side when turning, advanced transaxle, electromagnetic braking system, and controlling system.
Reliable range has a range of 25-30km after charging.
360 degree swivel chair and foldable armrest make you become more comfortable.
Efficient up to 70% of transaxle output, auto shift to sleeping condition to save energy when stay idle.

Standard: CE
