Specifications
Product Description

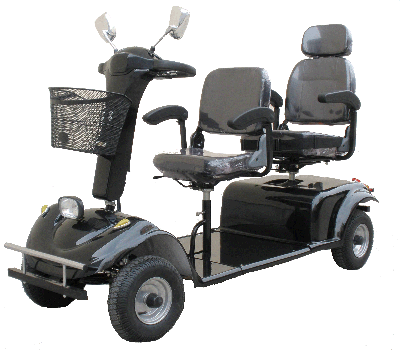

Mold: BTM-07A
Specification:
Weight capacity: 300kg
Rear wheel size: 396mm/16"
Front wheel size: 396mm/16"
Anti-tip wheel size5.2*48mm/0.2*1.89"
Battery: 70AH12V
Charger: 110VAC-230VAC, (Adjustable)/24VDC-4A
Recharge time: 11-12h
Controller: CURTIS (import from USA)
Motor: 600W
Net weight(with batteries): 130KG
Overall dimension: 1980*730*1050mm
Over carton size: 2080*740*680mm
Ground Clearance: 150mm/5.91"
Maximum climbing capability: 8 degree
Max forward speed: 15km/h
Range: 50Km
Qfy/20'FCL: 24PCS
Qfy/40'HQ: 48PCS
Features:
Easy operation, fashionable design.
Foldable seat, can be moved fore-and-aft, 180 rotated armrest
150kg user weight capacity.
Comfortable and deluxe seating.
Electric-magnetic braking system and automatic power off.
Electric transaxle drive with rear wheel drive provides optimum maneuverability.
Standard: CE
