Specifications
Product Description

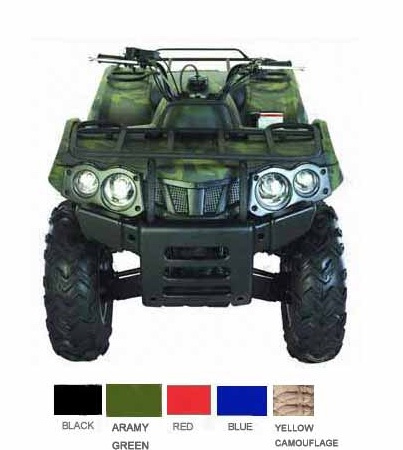

Model No: EC ATV400(EEC, 400CC, 4WD)
Description:
EC approval number: E13*2002/24*0096*00
1) Type: Single cylinder, upright, oil cooled, 4 strokes
2) Bore x stroke: 83 x 71.6mm
3) Compression ratio: 9.5: 1
4) Carburetor model: PD36G
5) Ignition style: CDI electronic ignition
6) Starting system: Electric with hand pull
7) Transmission: Axle drive
8) Engine braking:
Front: Double disc/right handle brake;
Rear: Drum/right foot or left handle
9) Fuel capacity: 13.5L
10) Size (L x W x H): 1,970 x 1,060 x 1,100mm
11) Wheelbase: 1,235mm
12) Turning diameter: 6m
13) Height of the seat: 827mm
14) Vehicle whole mass (with battery): 267kg
15) Maximum speed: >=70km/h
16) Speed model: Automatic (N: Neutrale gear, F: Forward gear, R: Reverse gear)
QTY/Container:
Qty/20'GP: 12units
Qty/40'HQ: 35units
