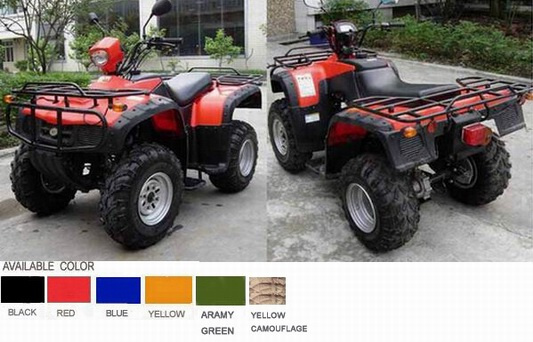

EEC ATV 250cc

Specifications

Prod Model:	EC ATV250-2

Product Description

Model No: EC ATV250-2

Displacement: 250cc

Description:

EC approval number:e4*2002/24*0563*00

Length*Width*Height(mm):1880*1040*1140 Wheelbase(mm):1160

Engine type:Single cylinders, air-cooling, Fourth stroke

start mode:Electric/Electric manual

Power (kW/r/min):9.9KW/6500r/min

Max-Torque (N.m/r/min):14/6000r/min

Mini Ground Clearance (mm):155

Max-speed: 80

Dry weight(Kg):240

Transmission mode:Axis

Break type(F/R):Disc/Drum

Specification:12V 14Ah

Climb degree : 25 degree

Tank capacity (L):12

Front hanging:Arm-swing

Rear hanging:Integral

Specification of tyre:Front-wheel drive 23*7-10; Rear wheel 22*10-10

cylinder diameter*journey(mm):71*58

Displacement (ml):229.6

Shift Gear:Five gear, automatic

Height of seats(mm):820

The smallest turning semidiameter(mm):2900

Parking trig:Mechanic lock

Ignition mode:C.D.I

Loading capacity(kg):165

Engine oil (L):1.6

Gear wheel oil (L):0.25

Person:1

Lubrication:Press splash

Compression proportion:8.7:1

Gas cylinder number:1

Parking dimension(mm):1970*1110*880

QTY/Container:
Qty/20'GP: 12 units
Qty/40'GP: 24 units
Qty/40'HQ: 36 units
