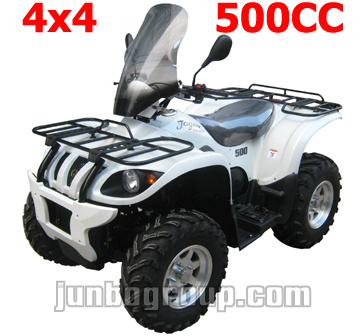

Home Zhejiang Junbo Group Co., Ltd EEC 500cc 4x4 Quad 4*4 ATV EEC 4WD 4Wheeler (Quad Bike DR795)
EEC 500cc 4x4 Quad 4*4 ATV EEC 4WD 4Wheeler (Quad Bike DR795)
| Price: | Negotiable |
|---|---|
| Min Order: | 1 |
Specifications
| Prod Model: | DR795 |
|---|---|
| Certification: | EEC |
| Transmission System: | Shaft Drive |
| Engine Type: | 4 Stroke |
| Transmission Type: | Automatic |
| Displacement: | >400CC |
Product Description
Pls take your time to browse our web site for more information about this product.CVT fully auto with hand reverse,
Extra low gear - R, N, D, L
2WD/4WD selectable by electric switch
4 wheels independent suspension
Japanese imported caburetor, easy starting in snowing area
4 wheels disc brake
LH hand brake stop the front wheels
RH hand brake stop the rear wheels
Foot brake stop the 4 wheels
Shaft drive
Big radiator
Engine: 4 strokes, water- cooled, CTV Fully Automatic
Cylinder: Single cylinder
Lubrication: Pressure splash
Cylinder Bore Diamiter: 92mm(3.63")
Piston Stroke: 75mm(2.96")
Displacement: 498.6CC
Compression Ratio: 10.2: 1
Carburetor: Single Chanber
Transmission: CVT Fully Automatic
Gear Shiftting R, N, D, L (Reverse, Neutral, Drive, Low gear)
Max Power: 24 kw / 6800r / min
Max Torge: 38 N. M / 5000r /min
L x W x H: 2020mm x 1160mm x 1170mm
Weight: 330kg
Brake: Front + Rear Disc Brake
Size of carton: 2000 x 1150 x 1100mm
Conveyance:
Qty/20' GP: 10PCS
Qty/40' HQ: 24PCS
500CC 4WD ATV 4x4
500CC ATV, 4wd ATV, 4x4 ATV
ATV, quad, ATV quad, quad ATV, EEC ATV, EEC quad, coc ATV, coc quad, 500CC quad, 500CC ATV
