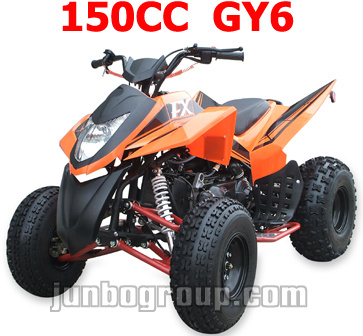

CE ATV 150CC ATV Quad Bike GY6 Automatic 150CC (Quad DR756)
| Price: | Negotiable |
|---|---|
| Min Order: | 1 |
Specifications
| Prod Model: | DR756 |
|---|---|
| Certification: | CE |
| Displacement: | 150CC |
| Transmission Type: | Automatic |
| Structure: | Multi-door |
| Engine Type: | 4 Stroke |
| Transmission System: | Chain Drive |
Product Description
Engine Type: 4-stroke, single cylinder, air cooledDisplacement: 149.5CC
Max power: (kw/rpm): 6.0/7500
Max torque(Nm/rpm): 8.3/6000
Starting: Electric
Ignition: CDI
Compression Rate: 9.2: 1
Transmission: CVT automatic with reverse inside
Final Drive: Chain
Front Brake: Hydraulic brake
Rear Brake: Hydraulic brake
Max Speed (Km/h): 65
Fuel Capacity(liter) L: 7
Battery: 12v, 9Ah
Wheel Base (mm): 1120
Front/rear Tire: 19x7-8'/21x10-8'
Seat height (mm): 760
Mini ground Clearance (mm): 120
Capacity Weight (kg): 160
N. W. (kgs): 141
G. W. (kgs): 168
Product size(mm): 1650 x 900 x 865
Outer packing:
Carton size (mm): 1435 x 900 x 865
Conveyance:
Qty/20' GP: 20 units
Qty/40' HQ: 63 units
