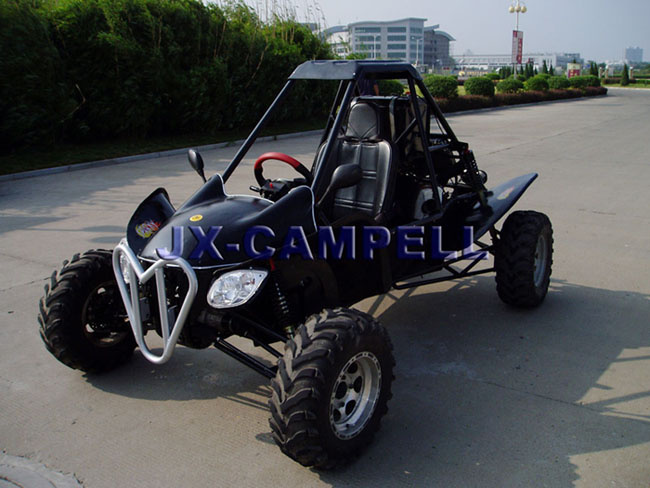

Buggy (KB500A)

Specifications

Prod Model:	KB500A

Product Description

CVT 500cc
--Continuously Variable Transmission
--New Design Body work
--On-demand 4WD function
--Independent Suspension System Front & Rear

ENGINE:
Type of Engine: Single-cylinder, 4-valves, 4-stroke, liquid-cooled, CDI, SOHC
Displacement: 493 ml
Bore x stroke: 87.5 x 82mm (3.44x3.22 in)
Carburetion: 10.2: 1
Starting: Hand pulled / Electric start
Transmission: CVT (Continuously Variable Transmission)
Gear: L-H-N-R-P
Final drive: 2 x 4 / 4 x 4 shaft
Max. Power output: 24.0kw
Max. Torque: 38.8 N. M
Max. Speed: >85 km/h

CHASSIS:
Frame type: Semi-double-cradle, high-tensile steel
Front/Rear suspension: Independent -double A-arm
Front tires: AT25 x 8-12
Rear tires: AT25 x 10-12
Front/Rear brakes: Hydraulic disc

DIMENSIONS:
L x W x H: 2700x 1650x1540mm (106 x 65 x 61 in. )
Wheelbase: 2070mm (81.5 in. )
Ground Clearance: 350mm
Dry weight: 350Kg
Max. Load: 100Kg (220 lbs)
Turn radius: <4000mm (157.5 in. )
Climbing: >25°
Fuel capacity: 40L (10.57 US gal)

OTHER:
Color choices: Black
Lighting: 12V 35/35W x 2, 12V 5W x 2 (front); 12V 21/5W x 1(rear); 12V 10W x 4 (side)
Battery: 36Ah. 12V Maintenance free
Warranty: 1 year (limited factory warranty)
