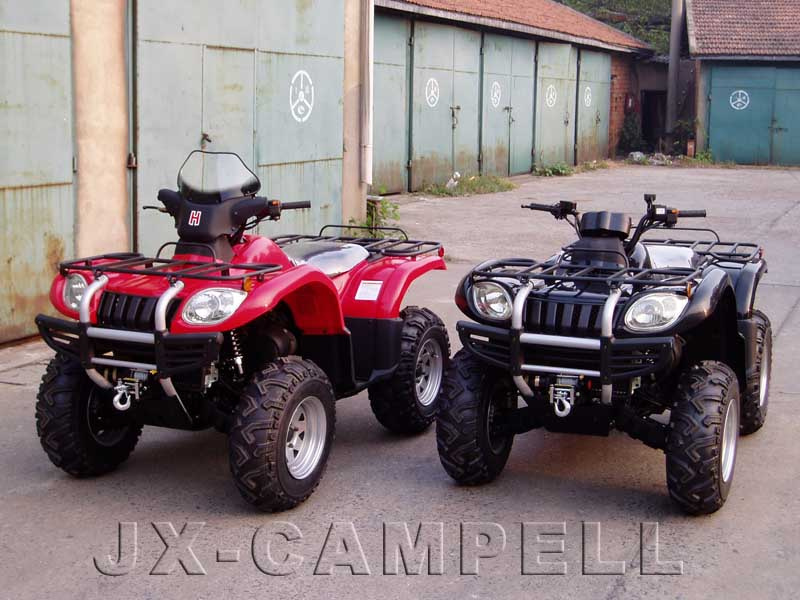

ATV (DF4-650A)

Specifications

Prod Model:	DF4-650A

Product Description

AMT 650cc
----Automatic Manual Transmission
----New Design Body work
----On-demand 4WD function
----Independent Suspension System Front & Rear

Engine: Horizontally opposed, Dual-cylinder, four-stroke, water-cooled, CDI
Displacement: 644 cm3 (650cc)
Bore x stroke: 76 x 71 mm (2.99 x 2.79 in.)
Carburetion: 8: 1
Starting Electric
Transmission: AMT (automatic manual transmission)
Final drive: 2 x 4 / 4 x 4 shaft
Frame type: Semi-double-cradle, high-tensile steel
Front suspension / wheel travel: Independent -double A-arm
Rear suspension / wheel travel: Independent -double A-arm
Front tires: AT25 x 8-12
Rear tires: AT25 x 10-12
Front brakes: Hydraulic disc
Rear brakes: Hydraulic disc
Overall length: 2150mm 84.6 in. (LxWxH)
Overall width: 1180mm 49.2 in.
Overall height: 1200mm 47.2in.
Seat height: 880 mm (34.6 in. )
Ground clearance: 180 mm (8.7 in. )
Dry weight: 350KG(772 lbs)
Fuel capacity: 18 L (4.5 U. S gal)
Color choices: Black, Red, Blue, Green Camouflage white/green
Warranty: 1 year (factory limited warrantey).
