Home Guangdong Marshell Electric Vehicle Co., Ltd. Battery Operated Two Seat Scooter for Elderly (DL24800-4)

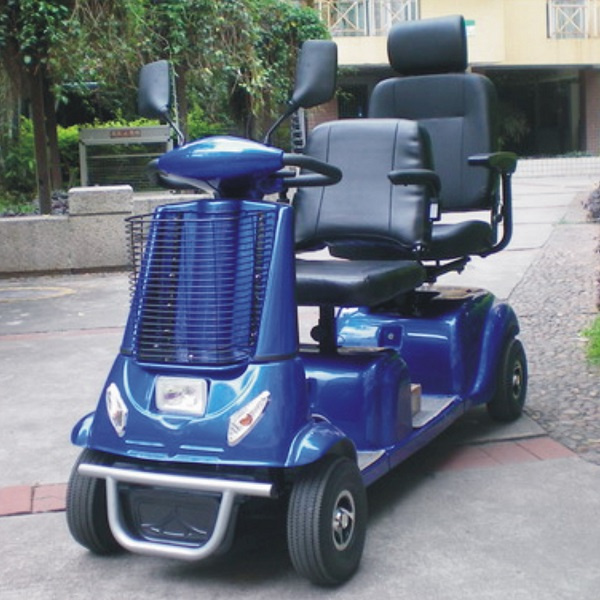

Battery Operated Two Seat Scooter for Elderly (DL24800-4)
| Price: | US $ 1000-1300/Piece |
|---|---|
| Trade Terms: | FOB,CIF,EXW |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
Specifications
| Prod Model: | DL24800-4 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension: | 1860*630*1290mm |
| Max. Climbing Ability (Loaded): | 20% |
| Passenger Capacity: | 2 |
| Chassis: | Steel |
| Gross Weight: | 197kg |
| Running Distance: | 45-60KM |
| Motor: | Brush |
| Max Speed: | <20km/h |
| Battery Type: | Lead-acid Battery |
| Frame Material: | Steel |
| Voltage Of Battery: | 24V |
| Power: | 501-800W |
| Certification: | CE |
| Wheel Hub: | Alloy Hubs |
| Folded: | Folded |
| Charging Time: | 6-8h |
| Part: | Motor |
| Maximum Loading Capacity: | 170kg |
| Wheel Size: | 4.1"/3.5-4" |
Product Description
battery operated two seat scooter for elderly (DL24800-4)two seat scooter for elderly features:
1. Standard color: Burgundy, Red, Black; Sunshade, Raincover, Walking stick holder, Drink Holder for option.
2. Curtis Controller ; Electric brake ;Light system is the standard.
3. Easy to operate to move forward and backward.
4. Adjustable seat and can be folded.
5. Well design of the package, so the goods can be protected well.
6. Has CE certificate for whole carts and for main parts also pass CE, UL,SAA for different carts.
two seat scooter for elderly specifications:
| Model | DL24800-4 |
| Passenger Capacity | 2 |
| Power supply | |
| Battery | 12V45AH*4 |
| Motor | 24V800W |
| Controller | PG, 24V120A |
| Charger | 12V5A |
| Performance | |
| Max. Speed | 11KM/H |
| Max.travelling range | 50KM |
| Climbing capactity | 20% |
| Brake Range | 4M |
| Minmum turning radius | 4M |
| Net Weight | 170KG |
| Gross Weight | 197KG |
| Carrying capacity | 170KG |
| Dimension | |
| Tyre | 4.1''/3.5-4'' |
| Normal dimensions | 1860*630*1290MM |
| Folded dimensions | 1800*630*830MM |
| Carton dimensions | 1890*730*895MM |
| Qty per container | 18PCS/26PCS/36PCS |
| Optional parts | Weather enclosure |
Marshell was founded in 2002 with two business area, electric vehicle and electronics, with two ISO9001:2000 production sites, located in Zhaoqing and Shanghai with a total of 210,000 m2.
Marshell Electric Vehicle is in the research, development and manufacture of electric vehicle including golf cart, tourism sight seeing bus & car, mobility scooter, electric motorcycle & scooter for kids, forklift and floor scrubber etc.
Marshell Electronics, of automotive and home power products including battery charger, battery maintainers, power inverter, jump starter, portable power domes, solar power extenders, etc.
Working with Marshell, you can enjoy considerable benefits with added values:
The full spectrum of electric vehicles, automotive and home power products of the highest possible standards of quality and performance;
Cost down on your existing products to regain your competitiveness and market shares with our proven quality and competitive price;
Full service and support on product upgrade and new product engineering, fast to market at minimized cost with our engineering team of more than 100 engineers for OEM and ODM projects.
