Specifications
Prod Model: |
DL24800-3 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Dimension: |
1210*620*1280mm |
Turning Radius: |
2.5 M |
Carrying Capacity: |
130 Kgs |
Chassis: |
Steel |
Gross Weight: |
135kg |
Battery: |
12V45ah*2 |
Controller: |
Pg, 24V 120A |
Charger: |
12V5a |
Climbing: |
20% |
Qty Per Container: |
24PCS/54PCS/81PCS |
Running Distance: |
<45KM |
Motor: |
Brush |
Brake: |
Front V-brake / Rear Drum Brake |
Max Speed: |
<20km/h |
Battery Type: |
Lead-acid Battery |
Frame Material: |
Steel |
Voltage Of Battery: |
24V |
Power: |
501-800W |
Certification: |
ISO |
Maximum Loading Capacity: |
≥120kg |
Wheel Hub: |
Alloy Hubs |
Folded: |
Folded |
Charging Time: |
6-8h |
Part: |
Charger |
Product Description

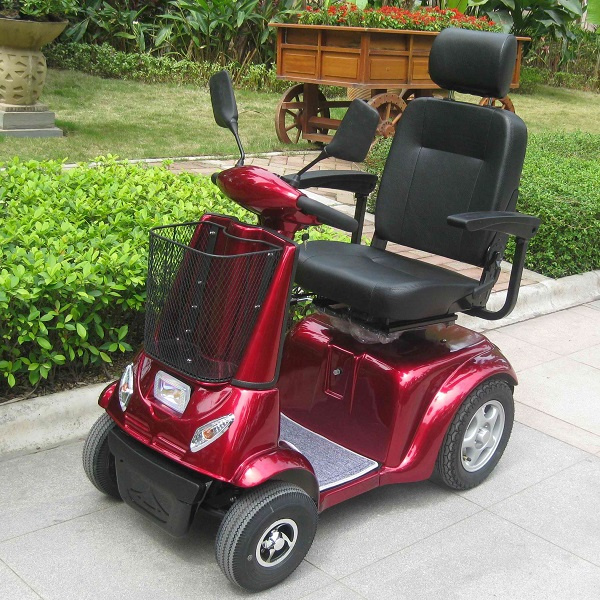

Marshell 800W Four Wheel Electric Mobility Scooter (DL24800-3)
electric mobility scooter features:
- Option parts: Sunshade, Rain Cover, Walking stick holder, Drink holder.
- Well design of the package, so the goods can be protected well.
- Speed can be adjusted.
- Good aftersale-service, as most parts are manufactured by ourselves.
- Has CE certificate for whole carts and for main parts also pass CE, UL, SAA for different carts.
- Import main parts: US battery (From USA) and Delta-Q chargers(From Canada),Curtis Controller(From USA).
- Smart steering system, easy to make forward and backward.
- Good climbing ablity and can park easily on Hills.
electric mobility scooter specifications:
Model | DL24800-3 |
Passenger Capacity | 1 |
Power supply |
|
Battery | 12V45AH*2 |
Motor | 24V800W |
Controller | PG, 24V120A |
Charger | 12V5A |
Performance |
|
Max. Speed | 14KM/H |
Max.travelling range | 40 |
Climbing capactity | 20% |
Brake Range | 6 |
Minmum turning radius | 2.5 |
Gross Weight | 135KG |
Carrying capacity | 130KG |
Dimension |
|
Tyre | 4.1''/3.5-4'';3.0-8'' |
Normal dimensions | 1210*620*1280MM |
Folded dimensions | 1210*620*830MM |
Carton dimensions | 1320*720*860MM |
Qty per container | 24PCS/54PCS/81PCS |
Optional parts | Rear basket, walking stick bracket, Weather enclosure |
Who is Marshell?
Marshell was founded in 2002 with two business units, Electric Vehicle and Electronics. The core business of Marshell Electric Vehicle is in the research, development and manufacture of low-speed electric vehicles including mobility scooters, golf carts, resort and utility vehicles, etc.
Whereas, Marshell Electronics, of automotive and home power products including battery charges, battery maintainers, power inverters, jump starters, portable power domes, solar power extenders, etc.
How do you benefit?
Working with Marshell, you can enjoy considerable benefits with added values:
The full spectrum of electric vehicles, automotive and home power products of the highest possible standards of quality and performance.
Great flexibility of production capacity enables you to fast meet the market change and demand with our two ISO9001:2000 certified factories, strategically located in Zhaoqing and Shanghai with a total of 210,000 m2 of fully equipped workshops.
Cost down on your existing products to regain your competitiveness and market shares with our proven quality and competitive price.
Full service and support on product upgrade and new product engineering, fast to market at minimized cost with our engineering team of more than 100 engineers for OEM and ODM projects.
