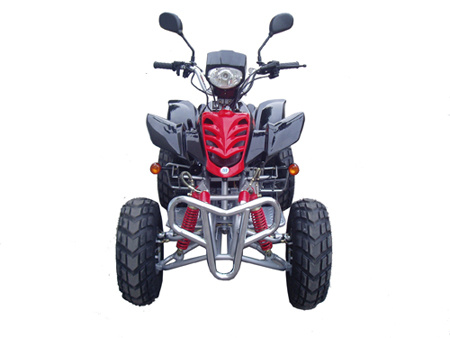

ATV/Quad (BFA-200D)

Specifications

Prod Model:	BFA-200D

Product Description

Type: Single Cylinder, 4 stroke, water-cooled
Displacement(mml): 193.3
Bore× Storke(mm): 63× 62
Max power/rotate speed(kw/rpm): 10.5kw/8000r/min
Max torue/rotate speed(N. M/rpm): 13N. M/6000r/min
Minimum fuel consumption(g/kw. H): 400
Start mode: Electric
Transmission Mode: Shaft
Brake Mode: Drum/Dirum
Shift Speed Tpye: 5 gear international with inside reverse
Clutch Mode: Auto clutch
Length× Width× Height(mm): 1750× 1030× 1080
Package Type: Iron frame add Plastic bag add Carton
Minimum turning radius(mm): 2300
Climbing Degree: 30
Ignition Type: Cdi
Fuel Capacity: 4L
Oil Capacity: 1.6L
Gearbox Oil Capacity: 0.27L
Front Shock Absorber: Independently suspension
Rear Shock Absorber: Single Swing
Front Suspension: Double Swing
Rear Suspension: Integrity Swing
Battery: 12γ -9Ah
Load Weight (kg): 150
Load Person: 1Person
Seat Height(mm): 910± 20
Compression Ratio: 10.16: 1
Minimum Ground Ground Clearance(mm): 130
Axle Distance: 1110mm
Lubricate type: Splash & Compression
Top Speed(km/h): 70
Type Dimension(Front/rear): At23× 7-10/AT22× 10_10
Front Wheel: 19× 7_8
Rear Wheel: 18× 9.5_8
Package Dimension(mm): 1550× 940× 840
Package type: Iron Frame add Plastic Bag add Carton
N. W.: 130KGS
G. W.: 150KGS
