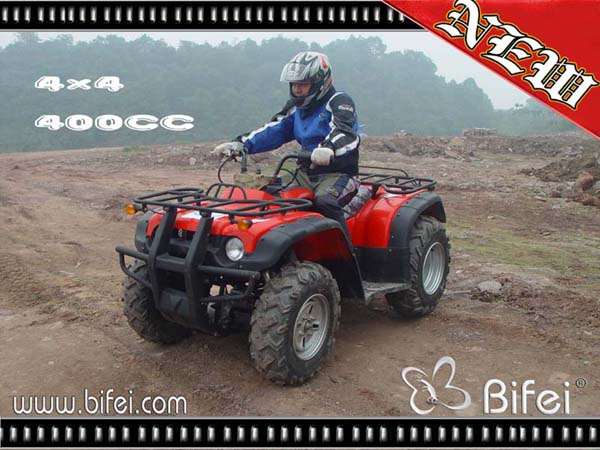

ATV BFA-400A(Single Cylinder. Air-Cooled, Four Stroke Engine)
| Price: | Negotiable/Piece |
|---|---|
| Min Order: | 1 /Piece |
Specifications
| Prod Model: | BFA-400A |
|---|
Product Description
DIMENSION(mm): 2100× 1125× 1175Axle distance(mm): 1240
ENGINE model: Single cylinder. Air-cooled, four stroke
Starter: Eletrical/hand
Rated power(kW/r/min): 16KW/6500r/min
Bore× Stroke(N. M/r/min): 26N. M/5000r/min
MAX SPEED(km/h): ≥ 75
MIN GROUND CLEARANCE(mm): 210
NET WEIGHT(Kg): 290
TRANSMISSION: Chain drive
BRAKE: Front/rear disc
Battery: 12V20Ah
Climbing degree: ≥ 40°
Oil capacity(L): 14L
Front suspension: Suspension rod/rotary rod
Rear suspension Tyre: F: 25× 8-12 R: 25× 10-12
Bore× Stroke(mm): 83× 71. 6
Displacement(ml): 387. 4
Shift type 5 speed front driving and 1 speed reverse driving
SEAT HEIGHT (mm): 860
MIN Turning(mm): 1000
Starter: C. D. I
MAX LOAD(kg): 220
Engine oil capacity(L): 2. 9
Gear oil capacity(L): Front: 0. 45; Rear: 0. 45
Lubrication: Press/splash
Compression Ratio: 8. 7: 1
Cylinder: Single
Carton Size: (mm): 2150× 1160× 880
QUANTITY "20FT: 10pcs
40FCL: 22pcs
40HQ: 33pcs"
