Specifications
Product Description

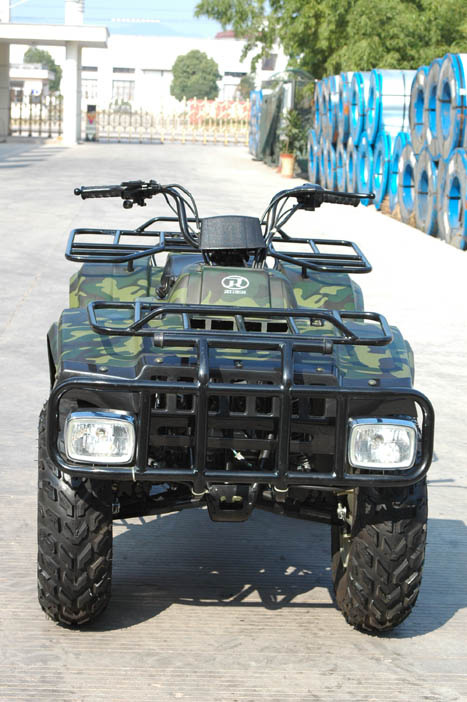

Art. NO.: LD250A
1> ENGINE INFO:
Engine brand: LIFAN
Engine Type: Air-cooling, 4-strokes, double
Compression Ratio: 9.2: 1
Lubrication: Pressure
Lubricant: SAE 15W/40 SE(GB11121-1995)
Displacement: 250CC
Max power: 13kw/8500r/min
Max torque: 15N. M/ 7000r/min
Bore*stroke(mm): 53x53
Tire Pressure(kpa): ≤69
Max Speed (km/h): ≤70
Ignition: CDI
Starting system: Electric
Battery: 12V-12A
2> CHASSIS ETC:
Clutch: Manual
Driveline: Chain-drive
Driving wheel: Rear wheel drive
Brakes, front/rear: Drum
Brake operation front / rear: Hand / foot
Tires, front/rear: 23x7-10 / 22x10-10
Weight, G. W. /N. W: 260kgs / 240kgs
Max load: 100kgs
3> DIMENSIONS:
Wheelbase (mm): 1200
OA L*W*H (mm): 1890x1030x1100
Min ground clearance(mm): 190
Carton size (mm): 1930x1055x860
Shipping info:
20'GP: 12pcs
40'GP: 24pcs
40'HQ: 36pcs
