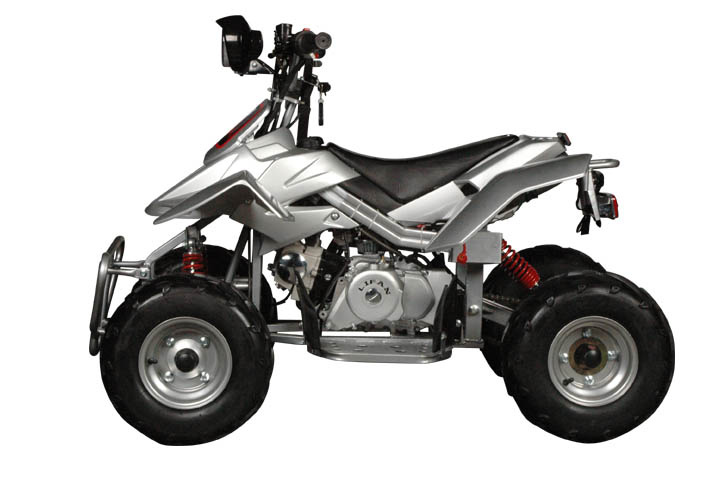

ATV (LD90A-3)

Specifications

Prod Model:	LD90A-3

Product Description

Art. NO.: LD90A-3
1> ENGINE INFO:
Engine brand: LIFAN
Engine Type: Air-cooling, 4-strokes, single
Compression Ratio: 8.5: 1
Lubrication: Pressure
Lubricant: SAE 15W/40 SE(GB11121-1995)
Displacement: 90CC
Max power: 4.4KW/7500r/min
Max torque: 5.5N. M/4500r/min
Bore*stroke(mm): 47x49.5
Tire Pressure(kpa): ≤69
Max Speed (km/h): ≤50
Ignition: CDI
Starting system: Electric
Battery: 12V-5A

2> CHASSIS ETC:
Clutch: Automatic
Driveline: Chain-drive
Driving wheel: Rear wheel drive
Brakes, front/rear: Drum/Disk
Brake operation: Hand
Tires, front/rear: 16x8.00-7 / 14.5x7.00-6
Weight, G. W. /N. W: 105kgs / 85kgs
Max load: 80kgs

3> DIMENSIONS:
Wheelbase (mm): 830
OA L*W*H (mm): 1350x930x790mm
Min ground clearance(mm): 105
Carton size (mm): 1150x750x660
Shipping info:
20'GP: 45pcs
40'GP: 90pcs
40'HQ: 120pcs
