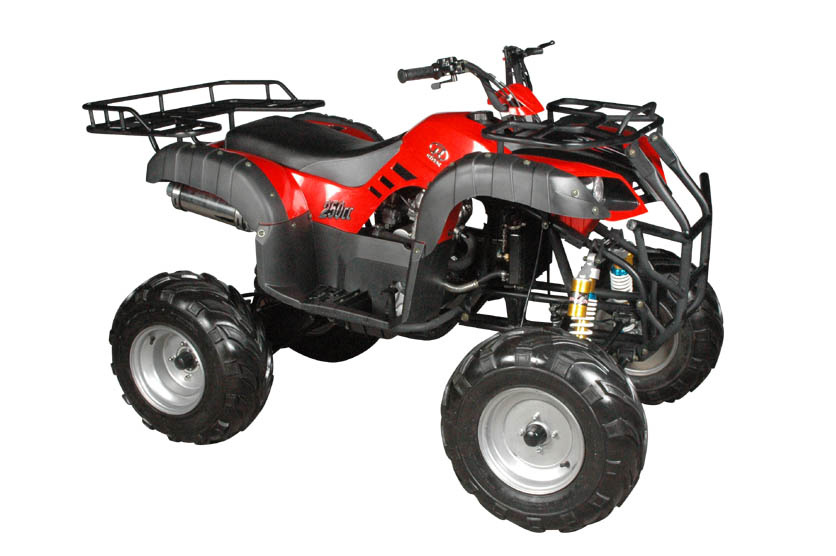

Home Zhejiang Rider Industry&Trade Co.,Ltd. ATV (LD250A-8)
Specifications
| Prod Model: | LD250A-8 |
|---|
Product Description
Art. NO.: LD250A-81> ENGINE INFO:
Engine brand: LIFAN
Engine Type: Water-cooling, 4-strokes, single reverse gear inside
Compression Ratio: 10.0: 1
Lubrication: Pressure
Lubricant: SAE 15W/40 SE(GB11121-1995)
Displacement: 250CC
Max power: 12 kw/6500 r/min
Max torque: 17.5 N. M/5500 r/min
Bore*stroke(mm): 67x65
Tire Pressure(kpa): ≤69
Max Speed (km/h): ≤78
Ignition: CDI
Starting system: Electric
Battery: 12V-9A
2> CHASSIS ETC:
Driveline: Chain-drive
Driving wheel: Rear wheel drive
Brakes, front/rear: Drum/Disk
Brake operation front/rear: Hand / Foot
Tires, front/rear: 21x7-10 / 20x10-10
Weight, G. W. /N. W: 205kgs / 180kgs
Max load: 95kgs
3> DIMENSIONS:
Wheelbase (mm): 830
OA L*W*H (mm): 1830x1050x1160
Min ground clearance(mm): 130
Tread: Front/rear (mm): 860 / 755
Carton size (mm): 1600x1000x870
Shipping info:
20'GP: 12pcs
40'GP: 28pcs
40'HQ: 42pcs
