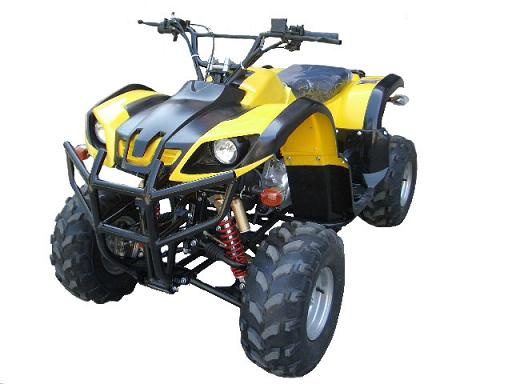

ATV (ATV-FST-110-F)

Specifications

Prod Model:	ATV-FST-110-F

Product Description

New one, 110cc and 150cc available

Engine type: Single cylinder, 4 stroke, air-cooled
Engine displacement(ml): 107
Bore x stroke(mm): 52. 4*49. 5
Max power (kw/(r/min)): 6/8000
Max torque(n. M/r/min): 7/6000
Compression ratio: 9. 0: 1
Lubrication oil capacity(l): 0. 9
Minimum fuel comsumption (g/kw. H): 365
Transmission:
Start mode: Electrical
Transmission mode: Chain
Brake mode(front/rear): Drum/disc
Front hanging: : Double arm -swing
Rear hanging: Integral
Brake distance(m/30km): 7
Shift speed tpye: Four gear with reverse gear (3-2-1-n-r)
Clutch mode: Auto clutch
External condition:
Length x width x height(mm): 1730x920x1050
Minimum turning radius(mm): 3000
Climbing degree: 30
Lamp: Head lamp
Seat height(mm): 800
Wheel base(mm): 1110
Front track(mm): 760
Rera track(mm): 680
Minimum ground clearance(mm): 150
Top speed(km/h): 55
Fuel capacity(l): 7. 8
Tyre dimension(front/rear): At19x7-8/at18x9. 5-8
Battery: 12v 9a
Cover material: Pp
Color: Red/blue/white/yellow/black
Packing:
Carton dimensions: 1520 x 820x 780mm
N. W.: 135kg
G. W.: 155kg
Conveyance:
Qty/20' gp: 30pcs
Qty/40' gp: 63pcs
Qty/40' hq: 63pcs
