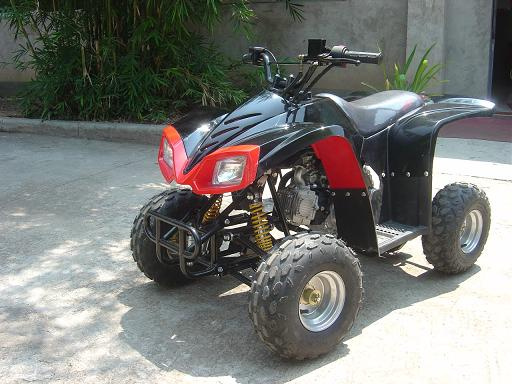

ATV-FST-50-J

Specifications

Prod Model:	ATV-FST-50-J

Product Description

1) Max speed: >30km/h
2) Climbing ability: >15o
3) Max loading: 80kg
4) Distance between axles: 690mm
5) Distance between front wheels: 420mm
6) Distance between rear wheels: 510mm
7) Ground clearance: 110mm
8) Front wheel: 145/70-6
9) Rear wheel: 145/70-6
10) Engine: 50cc, single-cylinder, 4 stroke
11) Displacement: 49ml
12) Rated power and rotation speed: 2. 3kw/8500rpm. approx
13) Max torque and Rotate Speed: 2. 7N. m/6500r/min
14) Compression ratio: 7: 1
15) Transmission: fully auto clutch and 4 speed semi auto
16) Starting system: electric start and kick-back start
17) Cooling system: air cooling
18) Oil tank: 3. 4L
19) Brake: front and rear disc brake

Packing:
Carton: 1150 x 760 x 700mm
Dimensions: 1120 x 730 x 560mm
N. W.: 63kg
G. W.: 71kg
