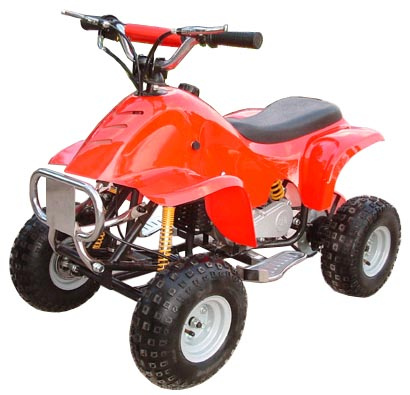

ATV (ATV-07)

Specifications

Prod Model:	ATV-07

Product Description

Engine: Single cylinder, 2 stroke, air cooled
Displacement: 49cc
Bore x Stroke: 44 x 34 mm
Compression ratio: 7.8:1
Max. Torque: 2.2 N.m/5000 rpm
Fuel tank capaicity: 1.8L
Fuel type: unleaded petrol 25:1 2-stroke engine oil mixing
Tire: 11x5-5
Brakes: front dual drum brakes, rear disc brake
Suspension: front dual arm, rear swing arm
Transmission: chain driving
Starting system: electric/manual pull start
Max.speed: ~30kmph
Max.load capacity: 100kg
Seat height: 530mm
Min. ground clearance: 50mm
Wheelbase: 670mm
N.W./G.W: 50/54kg
Carton size: 103*65*65mm
Colors available: red,yellow, green,blue,silver,black, orange
59pcs/20'GP
120pcs/40'GP
156pcs/40'HQ
