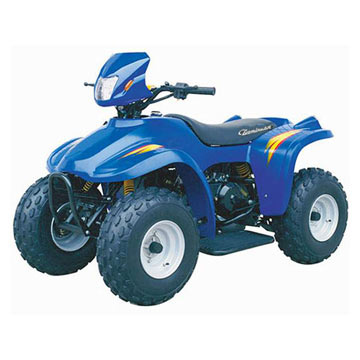

ATV (ATV-02)

Specifications

Prod Model:	ATV-02

Product Description

Features:
1) Product dimension: 1540 x 850 x 950mm
2) Engine: 110CC,4-stroke, single cylinder, air-cooled
3) With reverse shift;
4) Drive: Chain drive
5) Gas Tank: 7.8L
6) Compression ratio: 9.1:1
7) Ignition mode: CDI
8) Lubrication: press/splash
9) Max power(kw/rpm): 5.2kw/8000r/min
10) Max. torpue(N.M/tpm): 5.8
11) Idle speed(rpm): 1500
12) Start mode: Electric
13) Clutch: Wet centrifugal slcie
14) Engine oil cap(L): 0.9
15) Engine oil: 15W/40-SE
16) Carburator type: pz19
17) Spark plug type: A7TC
18) Oil pump: inner-outer rotor type
19) Magneto: Permanent magnetic
20) Fuel tank cap.(L): 4.5
21) Fuel grade: octance NO.RQ93# or higher

Packing:
Carton dimensions: 1465 x 835 x 760mm
G.W./N.W.: 150/135KG

Conveyance:
Qty/40'HQ: 66pcs
