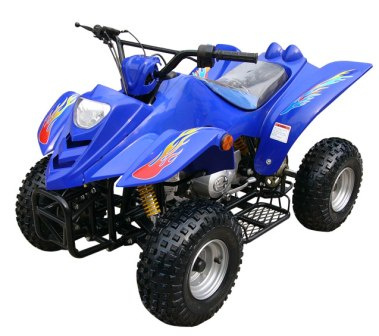

ATV (90CC-110CC)

Specifications

Product Description

Description:
LC90/110 LION
A flurry of emotions will hit the riders when they ride the Leo LC 90/110; The same emotions that you felt the first time you rode an ATV. And you ll be confident knowing they ve started off right-on a fun, easy-to-manage, reliable ATV. What a perfect way to introduce your rides to the sport of ATV riding. It has rear rack for carrying baggage as you travel; It is four strokes (no mixing oil); It is 3-speed automatic with reverse, headlight, hydraulic brake and adjustable suspension.
These features and its reliability are just some of the premium benefits found on this exceptional, value-packed machine.
We recommend this machine for riders 12 years of ages and older.

Features
LC90/110 ATV features
The LC90/110 can meet up the demand of sports riders, it can do well sports performance.
The LC90/110 features attractive appearance and popular style with bright color
The LC90/110 features neutral lights and braking and turning lights.
Lightweight air-cooled engine is vertical mounted, which makes the vechicle fuel saving and high powerful and strong and durable.
Reasonable design frame reduces the vibration of the whole vehicle.
Shaft is very strong and durable and safe, can last heavy loading and anti-pressure and high fast dash.
Other features:
Steel upper & lower A-Arms with shock and mono shock with swing arm(10-15cm) of travel.
Front mechanical brakes and sealed hydraulic disc brakes
Tires feature aggressive tread patterns for excellent traction.
Durable comfortable easy to use controls
Ergonomically designed seating and control layouts provide a comfortable operating position for a wide range of rider sizes.
Easy to use parking brake.
Standard tool kit includes spanners.
Specification:
Main Specification
No. Item Description
1 Overall Dimension LengthXWidthXHeight 1360X870X940mm
2 Proper Mass of Empty Vehicle 130kg
3 Max Speed <=50km/h
4 Climbing Ability <=18
5 Specification of Front Wheel 19X7-8 or 16 X8-7
6 Specification of Rear Wheel 18X9. 5-8 or 16X8-7
7 Type of Engine ZS152FMH
8 Efficient Capacity 90ml or 108ml
9 Rated Power and Rotate Speed 8KW/8000r/min
10 Rated Torque and Rotate Speed 8. 5N. M/7500r/min
11 Compressing Ratio 8: 1
12 Gearshift Mode Three speed + reverse
13 Starting System Electrical Starting
14 Cooling System Air cooling
Additional Specification:
Engine type: ZS152FMF, air-cooled longitudinally mounted single-cylinder four-stroke
Bore and Stroke: 47X50. 70mm four-stroke
Ignition: CDI
Starter: Electronic
Clutch: Semi-Automatic
Transmission: Standard 4 speed automatic or optional 3 speed automatic with reverse.
Drive system: Rear drive-shaft.
Front Suspension: Upper & lower A-Arms with shock
Rear suspension: Mono shock with swing arm
Front brake: Manual mechanical drum
Rear brake: Hydraulic disc
Parking brake: Have
Turning radius: 2040mm
Fuel consumption: 3L
Racks: It is convenient because of having rear rack, but still retaining the beautiful appearance.
Max load: 100kgs
Remarks: Recommended for riders 12 years of age and older.
Available accessories
Trailer
Tool kit
Helmet
Rain Cover
Available color
12288; Blue12288; Yellow12288; Red Black Green
Safe packing
Iron frame covered with carton.
Loading quantity
14units/20ft; 32units/40ft ( completely assembled)
48units/40HQ( incompletely assembled, without
