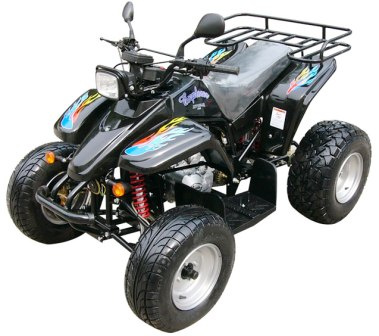

ATV-15CC (EEC)

Specifications

Product Description

LC150EEC ATV features
The LC150EEC can meet up the demand of sports riders, it can do well sports performance and drive it on road in European Union.
The LC150EEC features attractive appearance and popular style with bright color
The LC150EEC features neutral lights and braking and turning lights.
Lightweight air-cooled 150cc engine is vertical mounted , which makes the vechicle fuel saving and high powerful and strong and durable.
Shaft is very strong and durable and safe, can last heavy loading and anti-pressure and high fast dash.

Other features:
Steel upper &lower A-Arms with shock and mono shock with swing arm(10-15cm) of travel.
Front mechanical drum brake or hydraulic disc brakes
And rear sealed hydraulic disc brakes can be selected.
Tires feature aggressive tread patterns for excellent traction.
Durable comfortable easy to use controls
Ergonomically designed seating and control layouts provide a comfortable operating position for a wide rang of rider sizes.
Easy to use parking brake
Standard tool kit includes spanners.
Single transmission or double-transmission and double chain can be selected
Select on-road tire or off-road tire for customer

Specification:
Main Specification
No.Item Description
1 Overall Dimension Length*Width*Height 1690*1060*1200mm
2 Proper Mass of Empty Vehicle 169kg
3 Max Speed <=60km/h
4 Climbing Ability <=20°
5 Specification of Front Wheel 22X8-10, 35Kpa
6 Specification of Rear Wheel 20X11-8, 35Kpa
7 Type of Engine ZS162FMJ
8 Efficient Capacity 150ml
9 Rated Power and Rotate Speed 9.0 KW/9000r/min
10 Rated Torque and Rotate Speed 10.5N.M/7500r/min
11 Compressing Ratio 9.2:1
12 Gearshift Mode Four speed with reverse
13 Starting System Electrical Starting
14 Cooling System Air cooling

Additional Specification:
Engine type:Air-cooled longitudinally mounted single-cylinder four-stroke
Bore and Stroke:61.0*51.3mm
Ignition:CDI
Starter:Electronic
Clutch:Manual
Transmission:Standard 4 speed with reverse
Drive system:Chain transmission.
Front Suspension:Upper & lower A-Arms with shock
Rear suspension:Mono shock with swing arm
Front brake:Manual mechanical drum or disc hydraulic brake
Rear brake:Hydraulic disc
Parking brake:Have
Turning radius:2040mm
Fuel consumption:3.1L
Fuel tank capacity:7.5L
Max load:323kg
Remarks:Recommended for riders 16 years of age and older.
Available accessories
Trailer
Tool kit
Helmet
Rain Cover
Available color

Blue12288;YellowRed12288;Black
Safe packing
Iron frame covered with carton.
Loading quantity
14units/20ft ;28units/40ft ( completely assembled)
42units/40HQ( incompletely assembled, without fixing the racks, headlamp, tires and handlebar)
