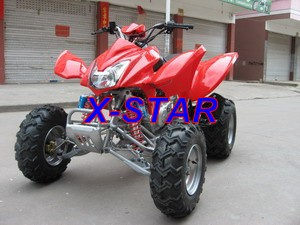

ATV 300cc (JW-300ATV-001)

Specifications

Prod Model:	JW-300ATV-001

Product Description

Engine: 300cc, air-cooled, Single Cylinder
Wheel Base (mm): 1, 040
Min. Ground Clearance (mm): 220
Wheel Spec.: Front wheel: AT 23 X 7-10 Rear wheel: AT 22 X 10-10
Ignition Type: C. D. I
BoreXStroke (mm): 78X61.2
Max. Power and Rev. (kW/(r/min)): 16.2/7, 500
Pressure Ratio: 8.9: 1
Starting Type: Electric Recoil Backup
Cooled Type: Air Cooled16) Brake Type: Disc/Drum
Fuel Tank Capacity: 12L
Gear Change Mechanism: 4 Forward, 1 Reverse
Transmission System: Chain
Front Suspension: Leading Arm
Rear Suspension: Swing Arm
Seat Height (mm): 810
Min. Turning Radius (mm): 2, 900
Parking Brake: Mechanical Lock
Battery: 12V-14Ah
Max. Load Capacity (kg): 165
Rider Capacity: 2 Person
Net Weight (KG): 240
Available Colors: Red, blue, light green
Product Size: 178X110X120cm
Canton size: 168X108X88cm
Conveyance: Qty/20FCL: 11pcs Qty/40FCL: 24pcs
