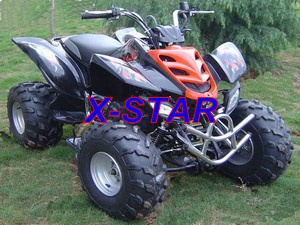

ATV 110cc (JW-110ATV-002 )

Specifications

Prod Model:	JW-110ATV-002

Product Description

1) Engine type: single cylinder, 4 strokes, air-cooled
2) Engine displacement (ml): 149.4
3) Bore x stroke (mm): 52 x 49.5
4) Max power (km/(r/min)): 6/8000
5) Max torque (r/min): 7/6000
6) Minimum fuel consumption (g/km.h): 367
7) Start mode: electrical
8) Transmission mode: axle/chain
9) Brake type:(front/rear) drum/drum
10) Brake distance (m/30km): 7
11) Shift speed type: four, with reverse gear
12) Clutch mode: automatic clutch
13) Length x width x height (mm): 1590 x 870 x 990
14) Min turning radius (mm): 3000
15) Climbing degree: 27
16) Seat height (mm): 670
17) Min ground clearance (mm): 120
18) Top speed (km/h): 55
19) Type dimension (front/rear): AT19 x 7-8 / AT18 x 9.5-8
Packing:
Carton dimensions: 1480 x 860 x 760mm
N.W. 130kg
G.W. 155kg
Conveyance:
Qty/20FCL: 27pcs
Qty/40FCL: 63pcs
