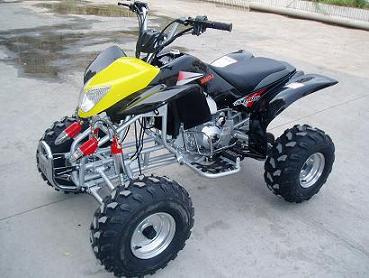

ATV 200cc Water Cooled (GS-BEST-ATV20)

Specifications

Prod Model:	GS-BEST-ATV20

Product Description

Specifications:200cc water cooled atv
1) Dimensions (L x W x H) (mm):1, 850 x 980 x 1, 080
2) Wheel base (mm):1, 000
3) Engine type:Single cylinder;Water cooling;Four-stroke
4) Start mode:Electric
5) Power (kW/r/min):10.0/7500r/min
6) Max torque (N.M/r/min):13.5/6500r/min
7) Max speed:>70km/h
8) Mini ground clearance (mm):140
9) Dry weight (kg):150
10) Transmission mode:Chain
11) Break type (F/R):Drum/disc
12) Battery specification:12V/9Ah
13) Climb degree:>20
14) Tank capacity:4L
15) Front hanging:Double arm-swing
16) Rear ganging:Integral
17) Specification of tyre:
A) Front-wheel drive:19 x 7-8
B) Rear wheel:18 x 9.50-8
18) Cylinder diameter x journey (mm):63.5 x 62.2
19) Displacement (ml):200
20) Shift gear:Four gears with reverse gear manual clutch
21) Height of seats (mm):800
22) Mini turning radium (mm):2400
23) Parking trig:Mechanic lock
24) Ignition mode:CDI
25) Loading capacity (kg):150
26) Engine oil (L):1.0
27) Gear wheel oil (L):0.2
28) Person:1
29) Lubrication:Press splash
30) Compression proportion:9.2:1
31) Parking dimension (mm):1, 485 x 835 x 770

Conveyance:
Qty/20' FCL:29 units atv
Qty/40' FCL:64 units atv
Qty/40' HQ:66 unitsatv
