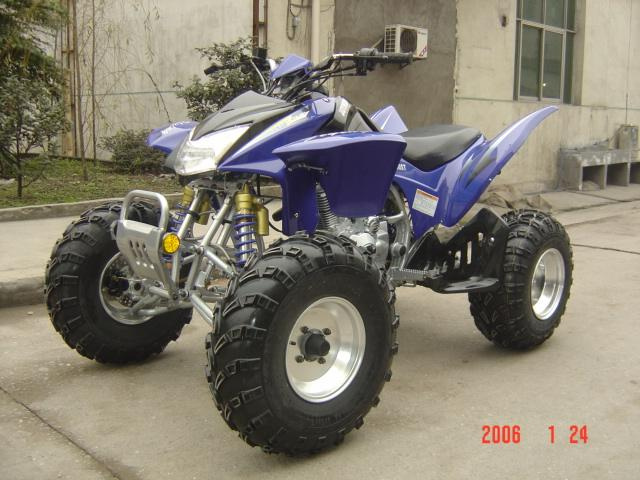

ATV (GS-BEST-20PB)

Specifications

Prod Model:	GS-BEST-ATV20PB

Product Description

-engine
-type single cylinder\4 stroke\reverse inside
-braking system: front/rear hydraulic brake
-max power(kw/r/min): 12 / 6500+-500
-transmission: chain, rear driving
-max torque(n. M/r/min): 18. 5/ 5500+-500
-front wheel type: at23*7-10
-cylinder radiusspace: 67*65
-atv-rear wheel type: at22*10-10
-displacement(ml): 230
-seat height(mm): 830
-compress rate 9. 0: 1
-min turning radius(mm) 2700
-tank capacity(l) 1+-0. 1
-min ground clearance(mm) 175
-lubricate pressure&splash lubricate

-oil case capacity(l) 9. 8
-ignition c. D. I
-locking system mechanical lock
-gear shaft: 4 gear/1 reverse, neutral
-battery: 12v14ah
-clutch manual wet multi-piece
-max loading ability(kg): 150
-reverse reverse inside
-seat number 1person
-starting electric starting
-fuel consume(l/100km) 5
-cool air cooled
-axle base(mm) 1260
-rear wheel base(mm) 930
-packing quantity
-12/28/42 setmax speed(km/h)
-max velocity (km/h) 90
-max climbing degree 60
-packing met(mm) 1680*1080*880
-measurement(mm) 1780*1100*1200
-g. W(kg) 218 n. W(kg) 180
