Specifications

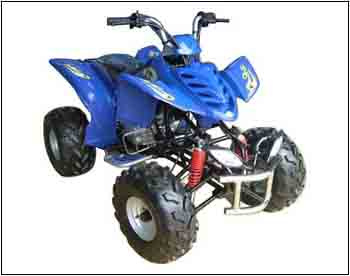

| Prod Model: | ATV-014 |
|---|
Product Description
ATV-014 (Dual Swing Arm)Main parameter as well as function index
Length × Width × Height (mm): 1850×980×1080
Wheel Base(mm): 1110
Engine Type: Single Cylinder; Air-cooling; Four stroke
Start Mode: Electric
Power (Kw/r/min): 10. 0/7500r/min
Max Torque (N. M/r/min): 13. 5/6500r/min
Max Speed(km/h): ≥60
Mini Ground Clearance (mm): 150
Dry Weight(Kg): 150
Transmission Mode: chain
Break Type(F/R) : Drum/Disc
Specification: 12V9Ah
Climb Degree : ≥20°
Tank Capacity (L): 4
Front Hanging: Double Arm-swing
Rear Hanging : Integral
Specification of tyre: Front-wheel drive: 19×7-8
Rear wheel: 18×9. 5-8
Cylinder Diameter*Journey(mm): 63. 5×62. 2
Displacement (ml): 197
Shift Gear: Four gear with reverse gear
Manual clutch
Height of seats(mm):
Mini Turning radium(mm): 2400
Parking Trig: Mechanic Lock
Ignition Mode: CDI
Loading Capacity(kg): 150
Engine Oil (L): 1. 0
Gear Wheel oil (L): 0. 2
Person: 1
Lubrication: Press Splash
Compression Proportion: 9. 2:1
Gas Cylinder number: 1
Parking Dimension(mm): 1485×835×770
Quantity of loading : 20' GP:29 units
40' GP:64 units
40' HQ:66 units
