Specifications
| Prod Model: | ATV-011 |
|---|
Product Description

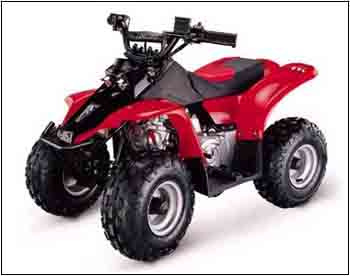

ATV-011 (Mini)Engine Type: Single cylinder, air-cooled, 4-stroke, level engine.
Displacement(ml): 50CC-70CC
Bore×Stroke: 39. 0×41. 4mm
Standard Power: 2. 0kw/7500r/min
Max. Torque: 2. 5N. M/5000r/min
Starting: Electric
Drive: Chain drive
Brake: Rear disc
Brake Distance(m/30km): ≤4. 00
Transmittion: Automatic transmittion
Clutch: Automatic clutch
Dimension(L×W×H)(mm): 1090×670×750
Climbability: ≥30º
Front light: Duble
Front turning light: No
Max. Speed(km/h): ≥40
Net Weight(kg): 98
Gross Weight(kg): 124
Packing Size(mm): 117×72×70CM
Container: 45 units for 20'ft; 90 units for 40'ft.
