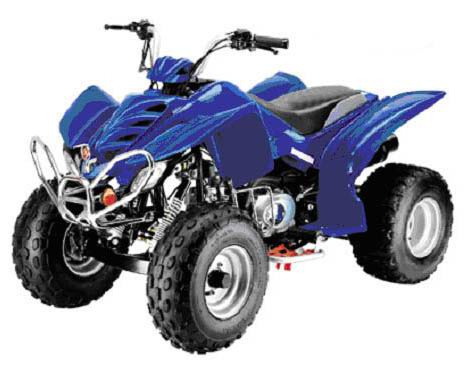

All Terrian Vehicle (GH-ATV110)

Specifications

Prod Model:	GH-ATV110

Product Description

* Transmission: Shaft/Chain
* Reverse: With
* Wheel Base(Mm): 900
* Min. Ground Clearance (Mm): 140
* Dry Weight(Kg): 98
* Fr. Tyre Size And Air Pressure: 16×8-7
* Rr. Tyre Size And Air Pressure: 16×8-7
* Fr. Brake: Drum 12288; 12288; Rr. Brake: Drum
* Max. Loading Capacity(Kg): 150
* Max. Speed (Km/H): 65
* Break Performance: <7m/30km/H
* Max. Fork Advancing Angel: 10 deg

Engine Specification:
* Engine Model: 1P52FMB
* Engine Type: Single-Cylinder, Air-Cooling, 4 stroke
* Bore×Stroke (Mm): 52×49.5
* Displacement (Ml): 110
* Power (Kw/R/Min): 5.2/8000
* Max. Torque (N. M/R/Min): 6.5/6000
* Starting Mode: Electric Start/Kick Start
* Ignition Mode: CDI Electronic Ignition
* Package Way: Iron And Seven-Layer Carton
