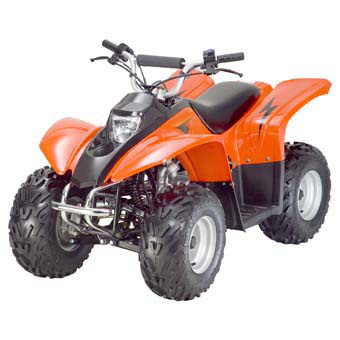

Air-Cooling, EEC ATVs (JY50ST)

Specifications

Prod Model:	JY50ST

Product Description

Engine Type: 4-Strokes, Air Cooled
Cylinder Arrangement: Single Cylinder
Transmission System: Chain Drive
Bore x Stroke(mm): 47X41. 4
Piston Displacement(cc): 71. 8
Compression Ration: 8. 8: 1
Maximum Power(kw/r/min): 3. 8/8000
Maximum Torque(N. M. /r/min): 4. 5/6000
Starting System: Electric Stater
Lubrication: Oil Injection
Transmission: Single speed
Overall Length(mm): 1335
Overall Width(mm): 730
Overall Height(mm): 780

Wheel Base(mm): 828
Seat Hight (mm): 542
Rider Capacity: 1
Dry Weight(kg): 74
Brake(Front/Rear): Drum/Disc
Tyre, Front: AT16*8-7
Tyre, Rear: AT16*8-7
Ignition Type: C. D. I.
Fuel Tank Capacity(L): 3. 2
Engine Oil Capacity(L): 0. 65
Front Suspension: Double A-Arm
Rear Suspension: Single Swing
Parking Brake: Mechanical
Max Load Capacity(kg): 45
Max. Speed(km/h): 35
Battery: 12v/4Ah
Clutch: Auto
Loading: 108 units/40'
