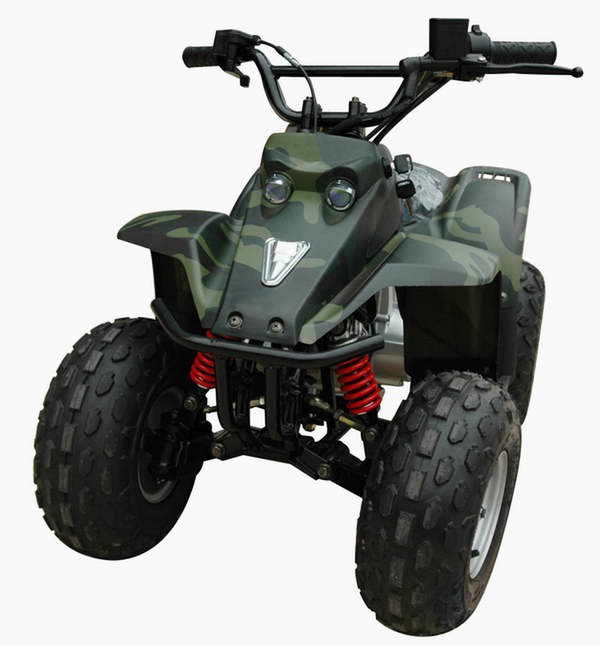

Air-cooling EEC ATV (JY50ST-2)

Specifications

Prod Model:	JY50ST-2

Product Description

Dimension (mm) (Length*Width*Height): 1080*670*770
Engine Type: Single-cylinder, air-cooled, 4-stroke
Displacement(ml): 49. 456
Power(kw/r/min): 2. 2KW/7500r/min
Maximum Torque(N. m. /r/min): 3. 0N. m/6000r/min
Starting: Electric
Max. speed(km/h): ≥30
Transmission: Chain
Brake Type(Front/Rear): rear Disc
Tyre size(Front / Rear): F: 145/70-6 R: 145/70-6
Ignition mode: CDI
Wheel base(mm): 700
Fuel tank capacity(L): 2. 75
Battery: 12V6. 5Ah
Net weight(kgs): 68
Max Loading (kgs): 50
20' GP: 51PCS
40' GP: 105PCS
40' HQ: 138PCS
