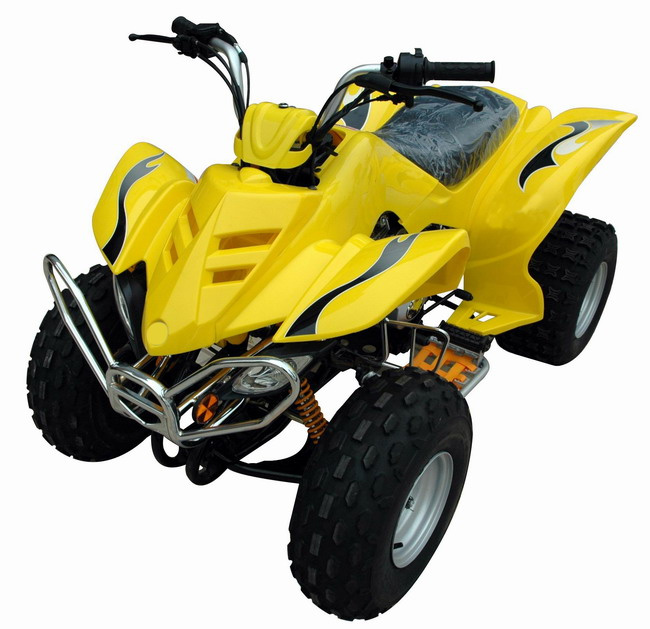

Air cooling EEC ATV (JY150ST-3)

Specifications

Prod Model:	JY150ST-3

Product Description

Dimension (mm) (Length*Width*Height):1550*920*1000
Engine Type:Single-cylinder,air-cooled,4-stroke
Displacement(ml):149.5
Power(kw/r/min):7.6KW/8500r/min
Maximum Torque(N.m./r/min):9.5N.m/6500r/min
Starting:Electric
Max.speed(km/h):≥45
Transmission:Axle
Brake Type(Front/Rear):Drum/Drum
Tyre size(Front / Rear) F:19*7-8 R:18*9.50-8
Ignition mode:CDI
Wheel base(mm):1000
Fuel tank capacity(L):4
Battery :12V9Ah
Net weight(kgs):145
Max Loading (kgs):145
20' GP:29PCS
40' GP:64PCS
40' HQ:66PCS
