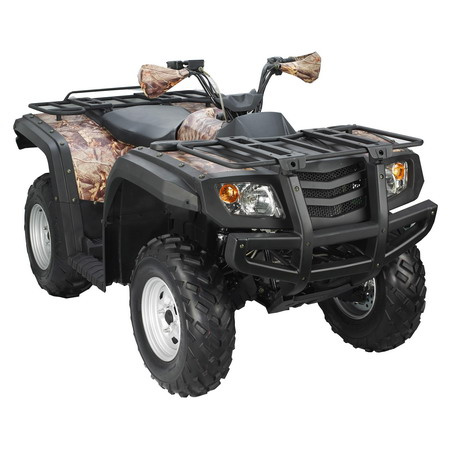

Home Farspeed Vehicle Industry Co., Ltd. 700cc/600cc/500cc ATV with EEC (FPA700E)
700cc/600cc/500cc ATV with EEC (FPA700E)
| Price: | Negotiable |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 1 /Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal |
Specifications
| Prod Model: | FPA700E |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Maximum Speed: | <60 km/h |
| Start-up: | Electric |
| Transmission: | Shaft |
| Displacement: | >400CC |
| Certification: | EEC |
Product Description
Type: 686cc, Water cooled, 5-valve, 4-stroke, 1-cylinderBore x Stroke: 102mm x 84mm
Compression Ratio: 9.2: 1
Max. power: 25.0kw/5000-5500rpm, 33.5HP
Max. torque: 49.0N. m/5000rpm
Carburetion: PD42J
Ignition: CDI
Starting: Electric/pull start
Transmission: L-H-N-R-P
Drive Train: Axle
CHASSIS
Suspension/Front: Independent double swing arm
Suspension/Rear: Independent double swing arm
Brakes/Front: Dual ventilated hydraulic disc
Brakes/Rear: Ventilated hydraulic disc
Tires/Front: AT25 x 8-12 radial
Tires/Rear: AT25 x 10-12 radial
DIMENSIONS
L x W x H: 2250mm x 1210mm x 1225mm
Seat Height: 870mm
Wheelbase: 1365mm
Ground Clearance: 260mm
Fuel Capatity: 17L
Dry Weight: 319kg
Loading Quantity: 8pcs/20'GP; 18pcs/40'GP; 27pcs/40'HQ
OTHER
Lighting: 12V35W/35W x 2, 12V5W x 2(front); 12V. 5W/21W x 1(rear)
Warranty: 6 months(limited factory warranty)
