Specifications
Prod Model: |
E-UTV |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product: |
7.5kw E-UTV |
Battery: |
6*12V Silicone Battery |
Motor: |
Kds Brushless AC Motor |
Controller: |
Sevcon Gen4 72V 350A |
Passenger Capacity: |
2 |
Range: |
135 Km |
Max Speed: |
42km/H |
Minimum Turning Radius: |
4.6m |
Max Climbing Ability: |
16 Degree |
Product Dimensions: |
2980 X 1470 X 1560mm |
Transmission System: |
Shaft Drive |
Transmission Type: |
Automatic |
Certification: |
EPA |
Fuel: |
Electric |
Structure: |
Two Side Doors |
Brake Type: |
Disc Brake |
Condition: |
New |
Power: |
>1000W |
Brand: |
Lannmarker |
Maximum Speed: |
42 Km/H |
Product Description

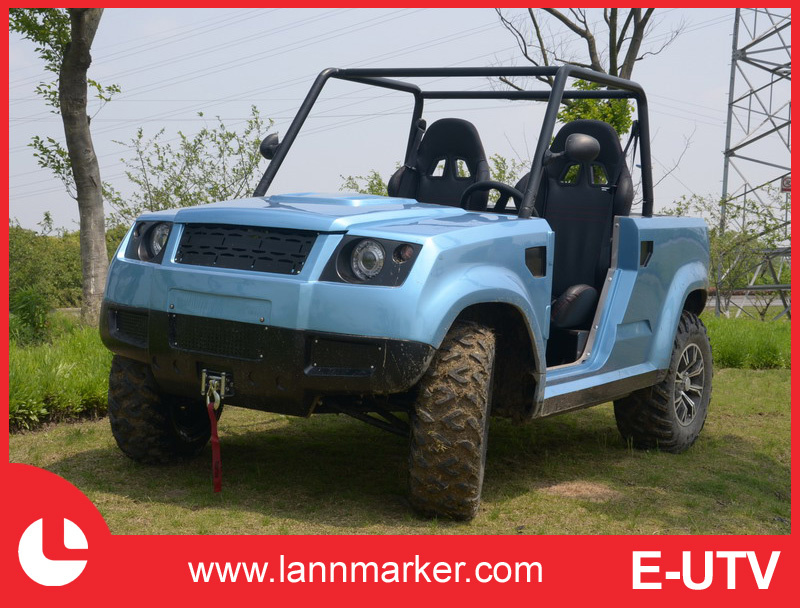

7.5KW electric buggy eec
7.5KW Electric UTV with Sevcon Controller and KSD Motor
1. MAIN FEATURES
All Electric - Zero Emissions
SEVCON® GEN4 AC Controller
KSD® 7.5KW Brushless AC Motor
CHILWEE® Silicone Battery 72V
Electrical Power Steering (EPS)
EC Certification Waterproof Car Charger
3. SPECIFICATION:
SPECIFICATION |
KEY COMPONENTS |
|
Battery |
6*12V, Chaowel Silicone Battery |
Motor |
KDS 7.5kw Brushless AC Motor |
Controller |
SEVCON GEN4 72V 350A (MAX 420A) |
PERFORMANCE |
|
Passenger Capacity |
2 |
Range |
135 km |
Max Speed |
42km/h |
Minimum Turning Radius |
4.6m |
Max Climbing Ability |
16 degree |
Max. Movement after brake |
≤ 4m at 30km/h |
Payload Capacity |
150kg |
Net Weight |
470kg (not including battery) |
Battery Weight |
52kg*6 (312 kg) |
Charging Time |
6 ~ 8h |
DIMENSIONS |
|
Product Dimensions |
2980 x 1470 x 1560mm |
Cargo Box Dimensions |
710 x 1160 x 260mm |
Min. Ground Clearance |
200mm |
Wheelbase |
2020mm |
Wheel Span |
1270mm |
Front and Rear Tire |
185/70-14 |
Steering System |
Pinion and Rack |
Front Suspension |
Double Arm Independent Suspension |
Rear Suspension |
Trailing-Arm |
Chargers |
Waterproof Vehicular |
Brake System |
Front: Disc Brake; Rear: Drum Brake |
Container Loading |
12 units/40'HQ |
