Home Shanghai Lannmarker Vehicle & Accessories Co., Ltd. 1100cc Dune Buggy 4X4 Go Kart

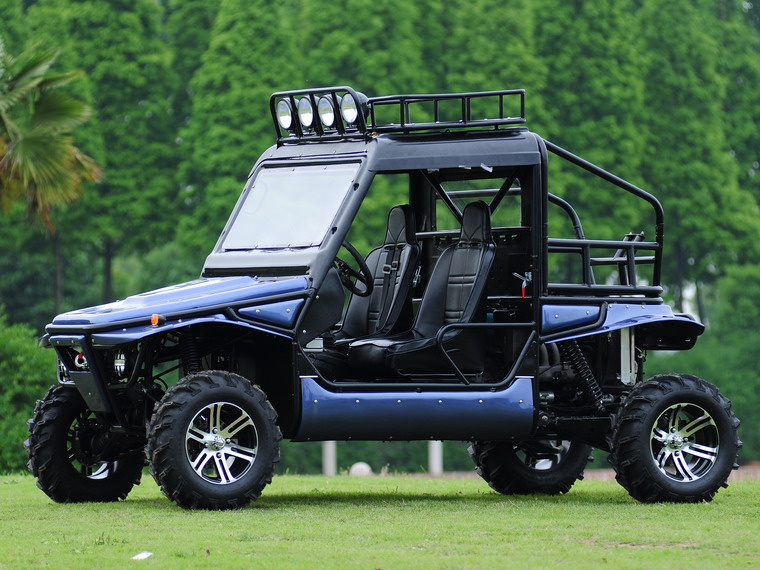

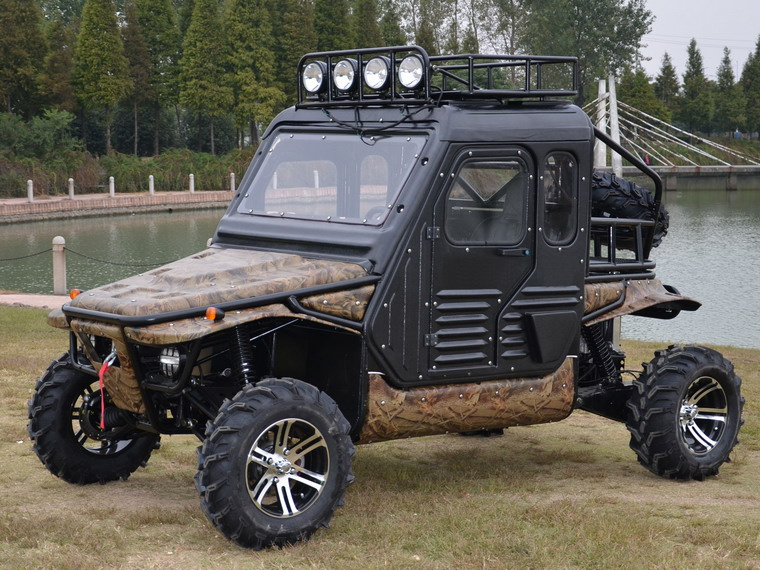

1100cc Dune Buggy 4X4 Go Kart
| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
Specifications
| Prod Model: | LANDMAX 1100TR |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Others: | F/R Locking Differential |
| Transmission Type: | Manual |
| Final Drive: | 2WD & 4WD Switch |
| Cooling System: | Water Cooled |
| Fuel: | Gas |
| Engine Type: | 4 Stroke |
| Brake Type: | Brake Disc |
| Maximum Speed: | >90 km/h |
| Transmission: | Shaft |
| Start-up: | Electric |
| Certification: | EPA |
| Displacement: | 1100CC |
Product Description
Go Kart 1100CC Dune Buggy 4X4 ATV CartManufacturer of buggy, go kart, go cart, ATV, dune buggy, quad bike, UTV, utility vehicle, beach buggy, sand buggy, ATV quad, quad ATV, racing go kart, utility ATV, buggy 4x4, 4X4 buggy, off road buggy, ATV 4x4, dune buggy 4x4, 4x4 dune buggy, go kart 4x4, 4x4 go kart, 4 wheeler ATV.
MAIN FEATURES:
- 1100CC Water-cooled EFI Engine
- Manual 5-Speed - Hydraulic Clutch
- Shaft Drive 2WD & 4WD Switch
- Front and Rear Locking Differential
- Independent Rear Suspension (IRS)
| SPECIFICATION | |
| ENGINE | |
| Engine Type | In-Line Four Cylinder, 16- Valve DOHC |
| Displacement | 1083cc |
| Bore x Stroke | 72 x 66.5mm |
| Compression | 9.5: 1 |
| Fuel System | Electronic Fuel Injection |
| Cooling System | Water Cooled |
| Ignition | ECU |
| Max. Power Output | 50 kw/6000r/min |
| Max. Torque | 90 N. M/4000r/min |
| Fuel Capacity | 30L (6.8Gal) |
| Transmission Mode | Manual 5-Speed - Hydraulic Clutch |
| Final Drive | 2WD/4WD Front and Rear Locking Differential |
| Top Speed | 95 KM |
| Wheels and Brakes | |
| Front/Rear Tyres | 27*8-14 / 27*10-14 |
| Front Suspension | Independent, Double Swing Arm |
| Rear Suspension | Independent, Trailing Dual Swing Arm |
| Front/Rear Brakes | Hydraulic Four Wheel Disc |
| Dimensions and Weight | |
| Product Dimension(LxWxH) | 3, 300 X 1, 600 X 1, 990mm |
| Carton Dimension(LxWxH) | 3, 310 X 1, 810 X 1, 150mm |
| Payload Capacity | 340 kg |
| Wheelbase | 2, 470 mm |
| Ground Clearance | 350 mm |
| Dry Weight | 703 kg |
| Gross Weight | 1095 kg |
| Container Loading | 6 units/40' HQ |
