600cc Water-Cooled ATV with EEC(FA600E)
| Price: | Negotiable |
|---|---|
| Trade Terms: | by sea |
| Min Order: | 1 |
Specifications
| Prod Model: | FA600E |
|---|
Product Description

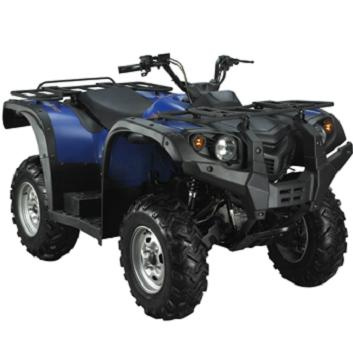

600cc water-cooled ATV with EEC(FA600E)ENGINE
Type: 608cc, Water cooled, 5-valve, 4-stroke, 1-cylinder
Bore x Stroke: 96mm x 84mm
Compression Ratio: 8.8: 1
Max. power: 22.0kw/5000rpm, 29.5HP
Max. torque: 49.0N. m/5500rpm
Carburetion: PD42J
Ignition: CDI
Starting: Electric/pull start
Transmission: L-H-N-R-P
Drive Train: Axle
CHASSIS
Suspension/Front: Independent double swing arm
Suspension/Rear: Independent double swing arm
Brakes/Front: Dual ventilated hydraulic disc
Brakes/Rear: Ventilated hydraulic disc
Tires/Front: AT23 x 8-12 radial
Tires/Rear: AT23 x 10-12 radial
DIMENSIONS
L x W x H: 2120mm x 1170mm x 1270mm
Seat Height: 870mm
Wheelbase: 1365mm
Ground Clearance: 260mm
Fuel Capatity: 17L
Dry Weight: 319kg
Loading Quantity: 8pcs/20'GP; 18pcs/40'GP; 27pcs/40'HQ
