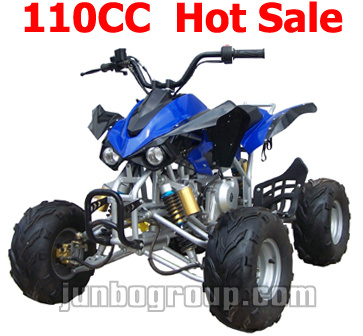

Home Zhejiang Junbo Group Co., Ltd 50cc / 70cc / 90cc / 110cc / 125cc ATV, Quad Bike (DR732)
50cc / 70cc / 90cc / 110cc / 125cc ATV, Quad Bike (DR732)
| Price: | Negotiable |
|---|---|
| Min Order: | 1 |
Specifications
| Prod Model: | DR732 |
|---|---|
| Certification: | CE |
| Displacement: | 110CC |
| Transmission Type: | Automatic |
| Engine Type: | 4 Stroke |
| Transmission System: | Chain Drive |
Product Description
Pls take your time to browse our web site for more information about this product.Engine type: 1-cylinder, 4 stroke, air cooled
Displacement: 107CC without reverse gear
Max Power: 4.2kw/8000rpm
Max Torque: 5.8Nm/6000rpm
Lubrication: C. D. I
Starting: Electric(battery: 12V, 4AH)
Transmission: Chain
Front/rear Suspension: Ballonet suspension
Front/rear brake: Hydraulic brake
Front tire: 16 x 8.0-7
Rear tire: 16 x 8.0-7
Max. Speed: 50km/h
Tire distance: F: 740mm / R: 690mm
Wheel base: 940mm
Mini ground Clearance: 100mm
Gross weight: 110kgs
Net weight: 90kgs
Dimension: 1370 x 1010 x 950mm
Carton Size: 1250 x 775 x 650mm
Conveyance:
Qty/20' Ft: 39PCS
Qty/40' Ft: 84PCS
Qty/40' HQ: 108PCS
