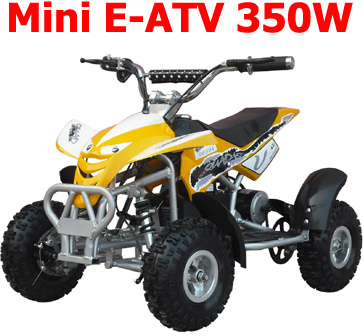

350W Electric ATV, Mini E - Quad (DR102)

Specifications

Prod Model:	DR102

Product Description

Motor:
Output: 350W
Voltage: 24VDC
Rated current: 12A

Chassis:
Brakes(Front/Rear): Disc
Absorber(front/rear): Spring absorber
Front tire: 4.10x10-4'
Rear tire: 4.10x10-4'

Dimensions:
Wheel base: 600mm
Seat height: 530mm
Ground clearance: 110mm
Max speed: 20km/h
Max load capacity: 110Kgs

Packing:
N. W: 45kgs
G. W: 50kgs
Carton dimensions: 980 x 580 x 500mm

Conveyance:
Qty/20' FCL: 88PCS
Qty/40' FCL: 184PCS
Qty/40' HQ: 240PCS
