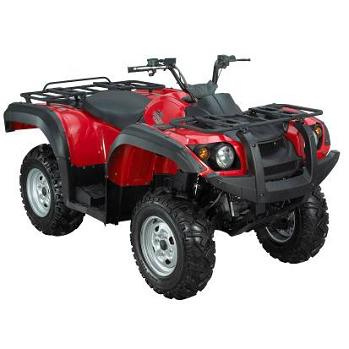

500cc Water-Cooled ATV with EEC (FA500E-2)

Specifications

Prod Model:	FA500E-2

Product Description

500cc water-cooled ATV with EEC(FA500E-2)
ENGINE
Type: 471cc, Water cooled, 4-stroke, 1-cylinder
Bore x Stroke: 84.5mm x 84mm
Compression Ratio: 9.4: 1
Max. power: 17.0kw/5000rpm, 22.8HP
Max. torque: 35.0N. m/5000rpm
Carburetion: PD33J-A
Ignition: CDI
Starting: Electric/pull start
Transmission: L-H-N-R-P
Drive Train: Axle
CHASSIS
Suspension/Front: Independent double swing arm
Suspension/Rear: Independent double swing arm
Brakes/Front: Dual ventilated hydraulic disc
Brakes/Rear: Ventilated hydraulic disc
Tires/Front: AT23 x 8-12 radial
Tires/Rear: AT23 x 10-12 radial
DIMENSIONS
L x W x H : 2200mm x 1300mm x 1270mm
Seat Height: 870mm
Wheelbase : 1365mm
Ground Clearance: 260mm
Fuel Capatity: 17L
Dry Weight: 310kg
Loading Quantity: 8pcs/20'GP; 18pcs/40'GP; 27pcs/40'HQ
