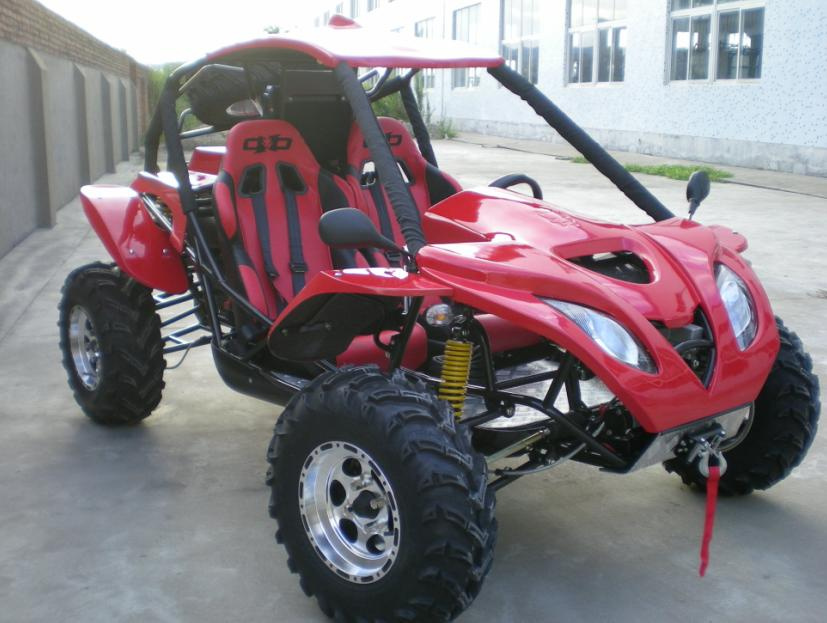

500CC Go Kart, Buggy (MC-454)
| Price: | Negotiable/Piece |
|---|---|
| Min Order: | 1 /Piece |
| Pay Type: | T/T,Western Union |
Specifications
| Prod Model: | MC-454 |
|---|
Product Description
1) Engine type: Single Cylinder, 4-stroke, water-cooled, 4-valve, CVT, R/N/L/H2) Displacement: 493CC
3) Max Power: 24kw/6500r/min (Europe standard: <15kw/6500r/min)
4) Max Torque: 38.8N. M/5500r/min (Europe standard: 30N. M/4500r/min)
5) Ignition system: CDI
6) Starter mode: Electric/ Hand
7) Compression ration: 10.2: 1
8) Battery: 12V 20Ah
9) Fule tank capacity: 30L
10) Economical oil exhaust(L/100km): 5
11) Max speed: 80km/h (Europe standard: 75km/h)
12) Transmission: Dual independent shaft drive
13) Brake Type: Hydraulic disc brake / Hydraulic disc brake
14) Wheelbase: 1930mm
15) Ground clearance: 350mm
16) Tires (front / rear): 25 x 8-12 / 25 x 10-12
17) N. W.: 393kgs
G. W.: 505kgs
18) Product dimension: 2710*1610*1380mm
19) Carton dimension: 2550*1320*830
20)Qty/20FT: 8units ( take down the rear suspension )
Qty/20FT: 4units ( Don't take down the rear suspension )
Qty/40HQ: 22units
ATV and go kart HS code: 8703101100
