Specifications
Prod Model: |
GBT500ATV-4 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
500CC ATV (Gbt500ATV-4): |
Type: 471CC, Liquid-Cooled, 5-Valve, 4-Stroke, 1-C |
Transmission System: |
Shaft Drive |
Transmission Type: |
Automatic |
Certification: |
EEC |
Engine Type: |
4 Stroke |
Fuel: |
Gas / Diesel |
Structure: |
Without Door |
Maximum Speed: |
>75 km/h |
Brake Type: |
Disc Brake |
Displacement: |
500CC |
Product Description

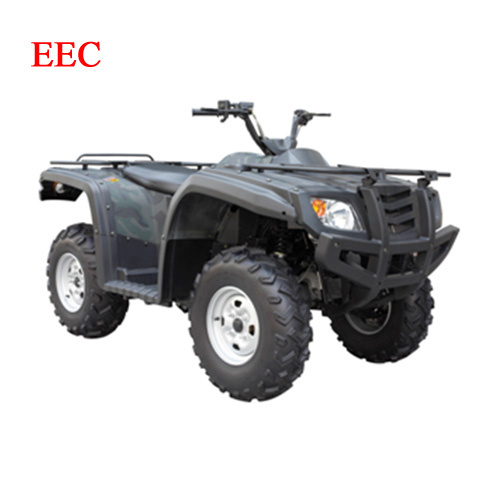

500CC ATV (GBT500ATV-4)
Specifications:
ENGINE:
Type: 471CC, Liquid-cooled, 5-valve, 4-stroke, 1-cylinder, EFI
Bore x Stroke: 84.5mm x 84mm
Compression Ratio: 9.4: 1
Ignition: EFI
Starting: Electric/pull start
Transmission: L-H-N-R-P
Drive Train: Axle
CHASSIS
Suspension: Independent double swing arm
Suspension/Rear: Independent double swing arm
Brakes/Front: Dual ventilated hydraulic disc
Brakes/Rear: Ventilated Hydraulic disc
Tires/Front: AT25 x 8-12 radial
Tires/Rear: AT25 x 10-12 radial
DIMENSIONS
L x W x H: 2200mm x1300mm x 1270mm
Seat Height: 870mm
Wheelbase: 1365mm
Ground Clearance: 260mm
Fuel Capacity: 17L
Dry Weight: 310kg
OTHER
Lighting: 12V35W/35W x 2, 12V5W x 2(front); Turning light 12V10W x 4(F&R); 12V. 5W/21W x 1(rear)
Colors: Green Camou, Yellow Camou, Blue, Black, Red, Green, Dark Green
Warranty: 12 Months
