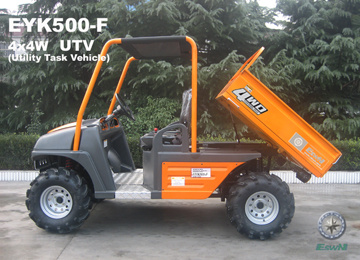

4x4 WD 500CC Utility Task Vehicle(EYK500-F)

Specifications

Prod Model:	EYK500-F

Product Description

2007 Model: Eyk500f
Type Of This Model: 4x4 Wd Utility Task Vehicle
Type Of Engine: 493cc, 4-Stroke, 1-Cylinder,
Bore And Stroke: 87.5x82mm
Compression Ratio: 10.2: 1
Max Power : 24kw/6500rpm
Max Speed : 45km/H
Max Torque: 38.8n. M/4500rpm
Cooling: Water Cooled
Ignition: Cdi
Transmission: Automatic Clutch, Cvt
Final Drive: Shaft, 4x4 And 2x4 Interconvert,
Starting System: Electric And Pull

Chasis
Suspension/Front: 'a' Double Arm, Swing-Axle,
Spring, Single Spring Absorber
Suspension/Rear: 'a' Double Arm, Swing-Axle,
Spring, Single Spring Absorber
Brakes/Front: Hydraulic Disc/Right Foot Control
Brakes/Rear: Hydraulic Disc/Right Foot Control
Tires/Front: 27x12-12
Tires/Rear: 27x12-12

Other Feature
Passenger 2 Incl. Driver/200kg
Seat Height: 930mm
Wheelbase : 2070mm
Fuel Capacity: 30 L
Lubrication Oil: 1.9 L
Distance Between Front Wheels: 1300mm
Distance Between Rear Wheels: 1325mm
Ground Clearance: 290mm
Cargo Bed Dimension: 1400mm X 1230mm X 290mm
Vehicle Load Capacity: 700kgs/ 540lbs
Cargo Bed Load Capacity: 500 Kgs/1100 Lbs

Towing Capacity: 550 Kgs/1200 Lbs
Battery: 12v 45ah
Head Light: 12v 35w/35w
Fuse: 35a
Starting Time: <5s
Net Weight: 550 Kgs/1200 Lbs
Gross Weight: 620 Kgs/1350 Lbs
Lxwxh, Vehicle: 3150mm X 1600mm X 2020mm
Lxwxh, Package: 2900mm X 1700mm X 1250mm
Packed Quantity: 40'h-8 Sets
Colors: Red/Orange/Green
