Specifications
Prod Model: |
QW-GS-01 |
Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Engine: |
2 Stroke |
Max Speed: |
21-50km/h |
Maximum Loading Capacity: |
75-120kg |
Certification: |
CE |
Fuel Tank Capacity: |
<5L |
Folded: |
Unfolded |
Displacement: |
49CC |
Product Description

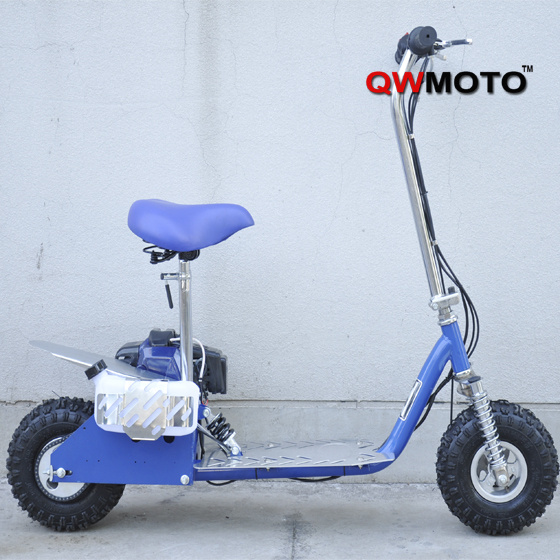

49CC Gasoline Scooter with pull start CE
Model No: QW-GS-01
Engine: 49CC air-cooled, 2 stroke, single cylinder
Displacement: 49ml
Bore * stroke: 39.5 x 40 mm
Compression ratio: 11: 1
Ignition: CDI
Transmission: Chain
Start: Manual pull start
Clutch: Automatic
Gearbox: Automatic
Frame: Steel
Suspension Front: Dual spring shocks
Suspension Rear: Single spring shocks
Front Tire: 3.1-4"
Rear Tire: 3.1-4"
Front Brake: Drilled disc brake
Rear Brake: Drilled disc brake (controlled by left brake lever)
Fuel Capacity: 1.31L
Seat Height: 770 mm
Color Choices: Black, red, blue, etc.
Products Size: 1250x630x1150 mm
Packing Size: 1140x350x480 mm
Packing Materials: Carton / metal frame / bubble bag
20FCL: 150PCS
40HQ: 330PCS
N. W: 22KGS
G. W: 25KGS.
