Specifications
Prod Model: |
QW-MPB-04B |
Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Wheel Size: |
6 Inches |
Certification: |
CE |
Start Method: |
Pull Start |
Engine Type: |
2-stroke |
Fuel: |
Gas / Diesel |
Condition: |
New |
Displacement: |
49CC |
Product Description

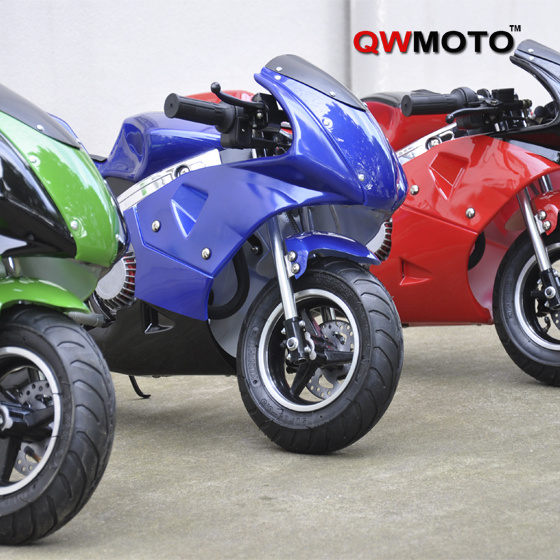

49CC Mini gasoline Pocket Bike for Kids CE
49CC mini pocket bike for kids
Model No: QW-MPB-04B
Engine: 49cc minimoto, single-cylinder, air cooled, 2 stroke
Upgrade air filter and carbs, new muffler
(little quiet) Safety Switch on the left bar
Dispacement: 47ml
Compression ratio: 7.5: 1
Max. Power(kw/r/mim): 2/ 7500
Max. Torque(N. M/r/min): 2.3/3600
Transmission: Chain drive single speed automatic
Starting system: Manual pull start only(alloy starter)
Ignition: C. D. I
Wheel: High strength alloy rim, color-painted
Tire: Front 90/65-6.5 Rear 110/50-6.5
Petrol tank volume: 1.8L(Unleaded Petrol+2 Stroke Oil--25: 1)
Max. Speed: ~40kmph(depending the terrian surface)
Max load capacity: 65kgs
Brake system: Front 1 Drilled disc brake and rear 1 Drilled disc brake
Suspension: Front hydraulic shocks, rear mono shock
Dimension: 1000mm(L)*180mm(W)*560mm(H)
Wheelbase: 700mm
Seat height: 430mm
Dry weight: 21 kg Gross weight: 24 kg
Carton Size: 1050mm(L)*330mm(W)*580mm(H)
Conveyance Qty:
150pcs/20FT, 350pcs/40'HQ
Colors available: Red/black/green/blue/yellow etc...
