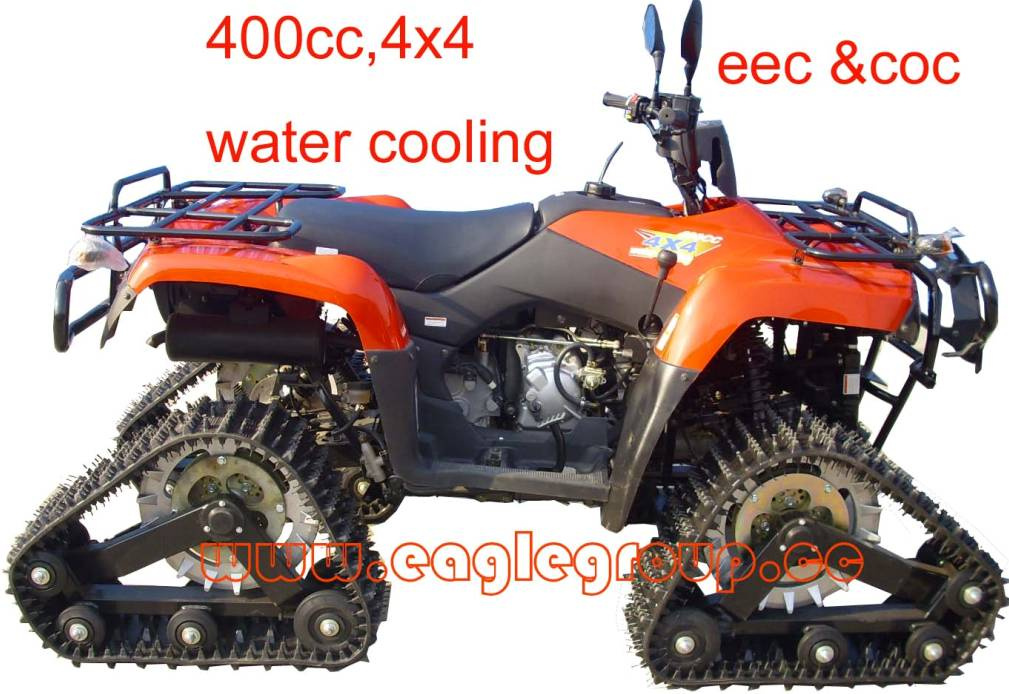

400CC ATV / Quad (YG400E-A3)

Specifications

Prod Model:	YG400E-A3

Product Description

Overall Dimension L*W*H: 2070mm*1150mm*1175mm
Ground clearance: 200mm
Max Speed: ≥70km/h
Climbing Ability: ≥30 degree
Specification of Front wheel: 25*8-12
Specification of Rear wheel: 25*10-12
Brake system front/rear: Disk/Disk
Engine: Four Stroke/Water-cooling
Efficient Capacity: 379ml

Rated Power and Rotate Speed: 12.6KW/7600r/min
Max Torque and Rotate Speed: 26N. M/6000r/min
Compressing Ratio: 10.5: 1
Gearshift Mode: High/Low/Free/Reverse
Transmission: CVT / Shaft Drive
Starting System: Electric
Cooling System: Water Cooling
Fuel tank: 13L
Packing Size: 1950mm*1150mm*860mm
G. W/N. W: 350/300 KG
Loading: 12PCS/20GP 36PCS/40HQ
