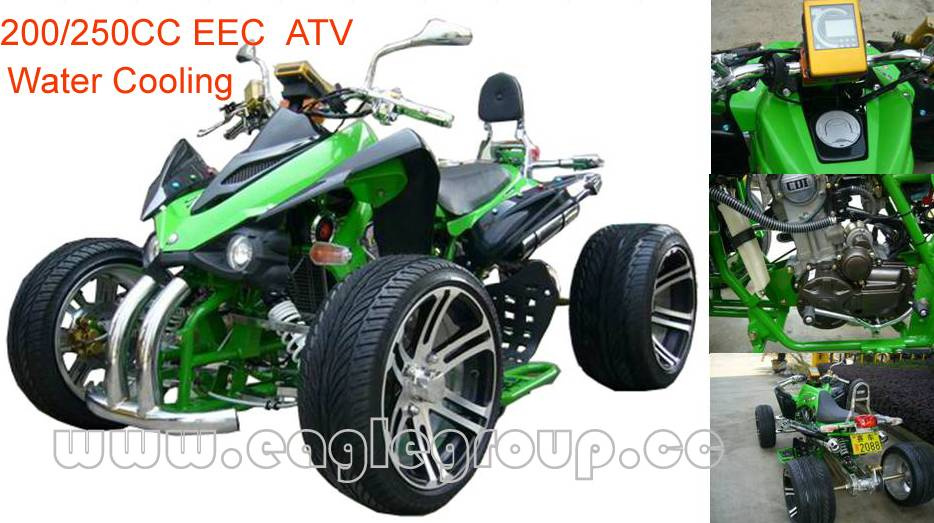

Home Eagle Industry and Trade Co., Ltd. EEC Racing ATV 250CC (YG-ATV250E0A11)
Specifications
| Prod Model: | YG-ATV260E-A11 |
|---|---|
| Certification: | EEC |
| Displacement: | 250CC |
| Transmission Type: | Semi-Automatic |
| Structure: | Multi-door |
| Engine Type: | 4 Stroke |
| Transmission System: | Chain Drive |
Product Description
1. Engine type: 200CC/250CC, 4 storke, Water Cooled.2. Max torque: 17.5Nm/5000rpm
3. Max power: 13kw/7500rpm
4. Ignition type: CDI
5. Transmission: Manual clutch, 4-speed, reverse gear, chain
6. Brake (Front/Rear): Disc /Disc
7. Starting system: Electric start
8. Battery spec: 12V, 9AH
9. Front suspension details: Double A x swing arm,: Air chamber shock absorbers
10. Rear suspension details: Inner ballonet absorber
11. Front tire spec: 235 /30 - 12 rear tires spec: 235 /30 - 12 Conveyance:
12. Vehicle dimensions: 202 x 113 x 184cm Qty/20' GP: 18 units
13. Wheel base: 130cm Qty/40' GP: 36 units
14. Seat height from ground: 60cm Qty/40' HQ: 42 units
15. Ground clearance: 80mm
16. Load capacity: 370kg
17. Fuel tank capacity: 8L
18. Gross weight in carton: 170kg
19. Net weight: 155kg
20. Packing size: 148 x 83 x 84cm
