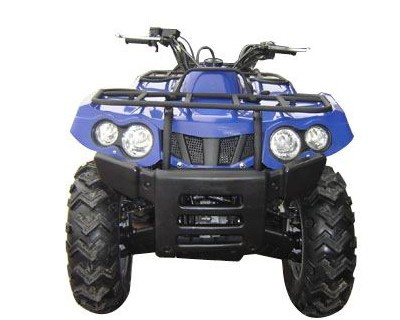

400cc 4X4 EEC ATV with YAMAHA Engina(KST400AE)

Specifications

Prod Model:	KST400AE

Product Description

Features:
1) Max. load: 500kg
2) Max. speed: 90km/h
3) Engine: single cylinder, oil cooled, four-stroke
4) Bore x stroke: 83 x 64.5mm
5) Displacement: 387ml
6) Max. power: 18kW (7,000r/min - 7,500r/min)
7) Max. torque: 26N.m (6,000r/min - 6,500r/min)
8) Drive: shaft drive 4 x 4
9) Shock arm: double arms
10) Gear: auto + neutral+ reverse
11) Start method: electric start
12) Fuel capacity: 13.5L
13) Compression ratio: 9.2:1
14) Tires:
a) Front: at 25 x 8-12
b) Rear: at 25 x 10-12
15) Brakes:
a) Front: disc
b) Rear: drum
16) Dimensions (L x W x H): 1,970 x 1,060 x 1,100mm
17) Wheelbase: 1,235mm
18) In water height: 350mm

Packing:
N.W.: 255kg
G.W.: 265kg
