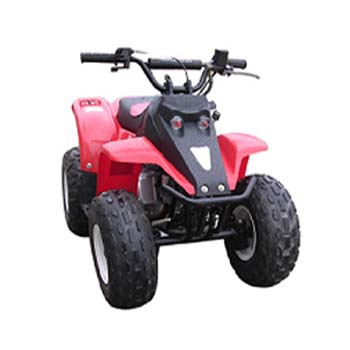

50cc Mini ATV with Remote Control(KST50A-1)

Specifications

Prod Model:	KST50A-1

Product Description

1) Max. speed: 30km/h
2) Max. range: 70km
3) Max. load: 80kg
4) Engine: single-cylinder, 4-stroke, air-cooled
5) Displacement: 49cc
6) Rated power and rotate speed: 2.3kW / 8,500rpm approx.
7) Max. torque and rotate speed: 2.7N.m / 6,500r/min
8) Start: kick and electric
9) Fuel tank: 3.4L
10) Compressing ratio: 7:1
11) Transmission: fully-auto clutch and 4-speed semi-auto
12) Wheel: 145 x 70-6
13) Brake: disc
14) Suspension front: hydraulic rear
15) Mounting: 15 degrees
16) Distance between axles: 690mm
17) Distance between front wheels: 420mm
18) Distance between rear wheels: 510mm
19) Ground clearance: 110mm
20) Product dimensions: 112 x 73 x 56cm
21) Colors available: red, blue, black, yellow, green

Outer packing:
1pc/ctn
Carton dimensions: 115 x 76 x 70cm
N.W.: 19kg
G.W.: 22kg

Conveyance:
Qty/20' FCL: 51pcs
Qty/40' FCL: 102pcs
Qty/40' HQ: 128pcs
