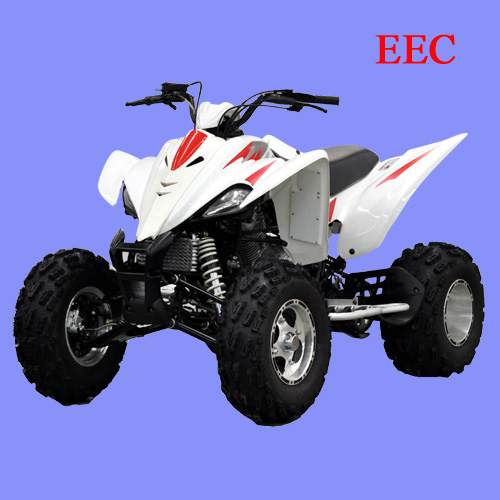

350CC ATV (GBT350ATV-5)
| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 12/Piece |
| Pay Type: | L/C,T/T |
Specifications
| Prod Model: | GBT350ATV-5 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 350CC EEC ATV: | Max. Power: 13.0kw/7000-7500rpm, 17.4HP |
| Transmission System: | Chain Drive |
| Transmission Type: | Automatic |
| Certification: | EEC |
| Engine Type: | 4 Stroke |
| Fuel: | Gas / Diesel |
| Structure: | Without Door |
| Maximum Speed: | 50-75 km/h |
| Brake Type: | Disc Brake |
| Displacement: | 350 |
Product Description
SpecificationsENGINE
Type: 348CC, oil cooled
4-stroke, 1-cyclinder
Cylinder: Size: 83mm× 64.5mm
Compression Ratio: 9.2: 1
Max. Power: 13.0kw/7000-7500rpm, 17.4HP
Carburetion: PD36J
Ignition: CDI
Starting: Electric
Transmission: 1-N-2-3-4-5-R
Drive Train: Chain
CHASSIS
Suspension/Front: Independent double swing arm
Suspension/Rear: Single swing arm
Brakes/Front: Dual ventilated hydraulic disc
Tires/Front: AT21× 7-10 radial
Tires/Rear: AT20× 10-9 radial
DIMENSIONS
L× W× H:
1780mm× 1120mm× 860mm
Seat Height: 830mm
Wheelbase: 1230mm
Ground Clearance: 250mm
Fuel Capacity: 9.0L
Dry Weight: 194kg
Loading Quantity: 12PCS/20'GP;
26PCS/40'GP; 38PCS/40'HQ
