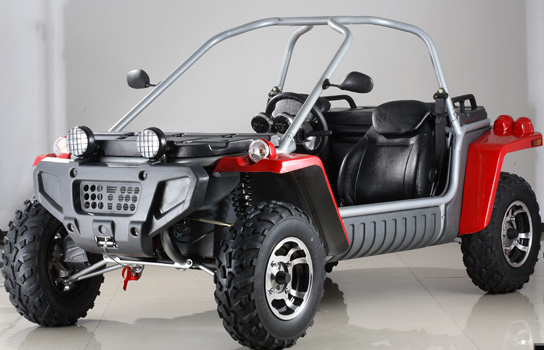

Home Farspeed Industry Group Company Ltd 300CC Go Kart/Dune Buggy (FPG300E)
Specifications
| Prod Model: | FPG300E |
|---|---|
| Certification: | EEC |
| Displacement: | 250CC |
Product Description
300CC EEC GO KART BUGGYModel No FPG300E
| ENGINE TYPE | Single cylinder,4 Stroke, Water Cooled |
| MAX.POWER(KW/rpm) | 14KW/7000rpm |
| MAX.TORQUE(NM/rpm) | 20N.M/5500rpm |
| MAX.SPEED | 60KM/h |
| BORE STROKE | 72.5mm × 66.8mm |
| DISPLACEMENT | 276cm |
| COMPRESSION RATIO | 10.3:1 |
| CARBURETOR | CVK052 |
| LUBRICATE | Combined force-feed and splash lubrication |
| AIR FILTER TYPE | Dry Air Filter Net |
| SPARK PLUG | DR8EA |
| IGNITIOIN | C.D.I |
| STARTING | Electric Start |
| STARTING PROCEDURE | Turn Electric Lock |
| GEARSHIFT | Manual |
| TRANSMISSION | Automatic CVT |
| FINAL DRIVE SYSTEM | 2W/Shaft |
| BRAKE FRONT | Hydraulic disc brake |
| BRAKE REAR | Hydraulic disc brake |
| BRAKE DISTANCE | 7m/30km/h |
| FRONT SUSPENSION | Double Swing Arm (Mcpherson front suspension) |
| REAR SUSPENSION | Indepentent rear suspension with double swing arm |
| SHOCK ABSORBER(F) | Double |
| SHOCK ABSORBER(R) | Double |
| BATTERY | 12V/20A |
| ENGINE OIL | 1.5L |
| TRANSMISSION OIL | 0.65L |
| REAR OIL | __ |
| FUEL | 90# unleaded gasoline |
| FUEL CAPACITY | 20L |
| TURNING RADIUS | 3800mm |
| MAX.LOAD(kgs/lbs) | 156kg |
| FRONT TIRE | 25×8-12 |
| REAR TIRE | 25×8-12 |
| WHEEL MATERIAL | Aluminium alloy |
| OVERALL | 2700×1470×1440mm |
| CARTONE SIZE (L/M/H) | 2520×1500×710mm |
| PACKAGE40HQ`(SET) | 23pcs |
| WHEELBASE(mm) | 2005mm |
| SEAT HEIGHT(mm) | 500mm |
| GROUND CLEARANCE | 250mm |
| NET WEIGHT(kgs/lbs) | 370kgs |
| COLOR CODE | Red, Black, Orange, Blue |
