Home Farspeed Industry Group Company Ltd 250CC EEC Go Kart/Buggy (FPG250E-L)
Specifications
| Prod Model: | FPG250E-L |
|---|---|
| Certification: | EEC |
| Displacement: | 250CC |
Product Description

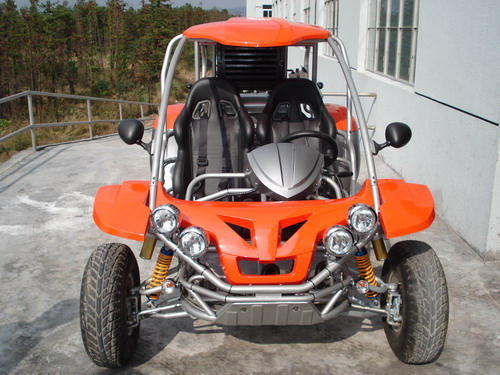

250CC EEC GO KARTModel No FPG250E-L
| Engine type | single cylinder water-cooled, 4-stroke, 250cc |
| Transmission | chain or shaft |
| Brake system | front/rear hydraulic disc/left foot control |
| Product dimensions | 2,430 x 1,565 x 1,565mm |
| Wheelbase | 1,650mm |
| Fuse | 15A |
| Corrected compress ratio | 10:01 |
| Cylinder size | 72 x 60mm |
| Carburetor | DPR7EA-9 (NGK) D7RTC |
| Output power | 11kW/7,000rpm |
| Max. torque | 17.6N.m/5,500rpm |
| Start mode | electric |
| Ignition | CDI |
| Lubrication | force and splash |
| Spark plug | C7HSA (NGK) |
| Plug gap | 0.6-0.7mm |
| Fuel brand | RQ-90 (leadless) |
| Lubricate oil brand | SAE10W-30 |
| Load capacity | 1 rider or 90kg |
| Fuel tank | 9.0L |
| Engine oil capacity | 1.0L |
| Climbing degree | 12degree |
| Battery | 12V, 6.5Ah |
| Head light | 12V 55W |
| Tail light | 12V LCD |
| Tire size | front-175/70-10 rear-255/60-10 |
| Front suspension | dual A-arm with 70mm of travel |
| Rear suspension | spring over shock with 90mm of travel |
| Top speed | 30km/h (or limited as per customers' requirements) |
| Dry weight | 310kg |
| Tire pressure | front/175KPA rear/200KPA |
| Min. turning radius | 7m |
| Parking trig | mechanical lock |
| Seat distance | 500mm |
| Carton dimensions | 2,300 x 1,460 x 880mm |
| Conveyance | 20'ft/8pcs 40'HQ/24pcs |
